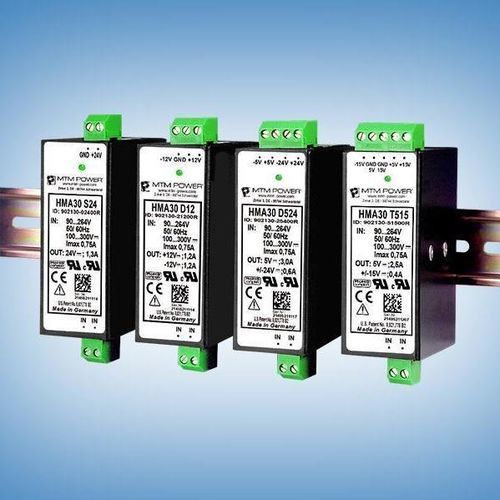

DIN rail power supply HMA30 D15

AC/DCdual-outputCE

Product overview
AC/DC power supply module for DIN-rail mounting with dual outputs ±15 V and rated power 30 W. Designed for continuous operation in industrial control and automation environments.

Features

• Wide input range
• Dual outputs: +15 V and -15 V
• Rated power: 30 W
• Efficiency ≥ 74%
• DIN-rail mounting
• Output current: 1 A per output

Applications

• Power supply for DIN-rail installations
• Supply for electronic and electrical circuits in process measurement and control
• Laboratory equipment
• IT and control systems

Technical Data HMA30 D15
Power: 30 W
AC input: 90 - 264 V
DC input: 100 - 300 V
Output Voltage U1: 15 V
Output Current I1: 1 A
Output Voltage U2: -15 V
Output Current I2: 1 A
Efficiency: ≥74 %
Mounting type: DIN rail
Dimensions: 35.0 x 113.0 x 70.0 mm
Weight: 390 g

Certifications

• CE
• UL / cUL
• RoHS
• UKCA

Technical specifications

• Power: 30 W
• AC input: 90 - 264 V
• DC input: 100 - 300 V
• Outputs: +15 V / -15 V
• Output current: 1 A per output
• Efficiency: ≥74 %
• Mounting type: DIN rail
• Dimensions: 35.0 x 113.0 x 70.0 mm
• Weight: 390 g
• Datasheet available
