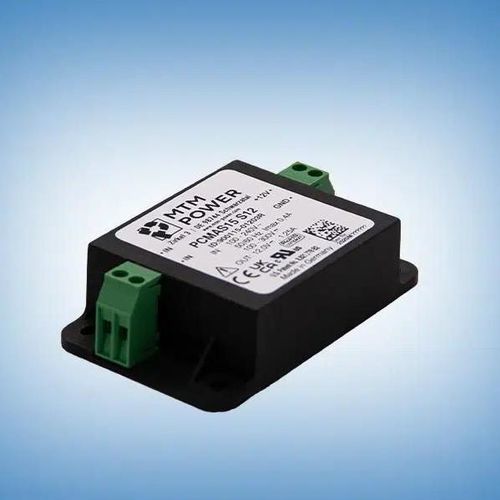

Chassis-mounted power supply PCMAS15 S12

AC/DCregulatedsingle-output

Product Overview
The PCMAS15 S12 is a 15 W AC/DC power supply, chassis-mount variant of the PMAS/PCMAS 15 W family. It provides a regulated 12 V output and is engineered for reliable continuous operation in industrial environments.

Features

• Wide input range for AC and DC operation
• Compact dimensions for space-constrained installations
• Overvoltage category 2
• High efficiency (≥81 %)

Applications

• Decentralised power supply for industrial equipment
• Available as PCB-mounting (PMAS) and chassis-mounting (PCMAS) variants
• Powering electronics in process measurement and control, laboratory instruments, and IT systems

Technical Data
Power: 15 W
AC input: 90 - 264 V
DC input: 100 - 300 V
Output voltage U1: 12 V
Output current I1: 1.25 A
Efficiency: ≥81 %
Mounting type: Chassis mount
Dimensions (L x W x H): 84.0 x 51.0 x 22.0 mm
Weight: 100 g
Overvoltage category: 2
