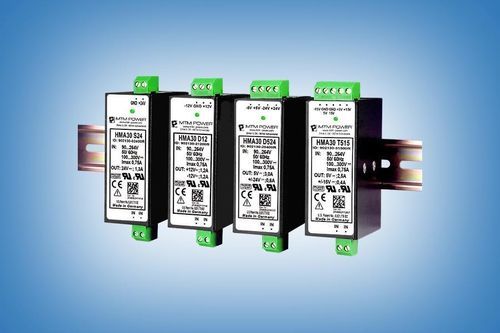

DIN rail power supply HMA30 D515

AC/DCdual-outputCE

Product Overview
AC/DC power supply module for DIN-rail mounting. 30 W total output power with dual outputs (5 V and 15 V). Designed for continuous operation in industrial environments. Wide input range supports AC (90–264 V) and DC (100–300 V) supply voltages.

Features

• Wide input range: AC 90–264 V and DC 100–300 V
• Dual outputs: 5 V / 3 A and 15 V / 1 A
• Total output power: 30 W
• Compact dimensions for control cabinets and measuring systems: 35.0 x 113.0 x 70.0 mm
• Efficiency ≥ 74 %
• DIN-rail mounting (35 mm)

Applications

• Power supply for DIN-rail mounting
• Supply of electronic and electrical circuits in process measurement and control systems
• Laboratory equipment
• IT systems and industrial automation

Technical Data (summary)
Power: 30 W
AC Input: 90 - 264 V
DC Input: 100 - 300 V
Output Voltage U1: 5 V
Output Current I1: 3 A
Output Voltage U3: 15 V
Output Current I3: 1 A
Efficiency: ≥74 %
Mounting Type: DIN Rail Mount
Dimensions: 35.0 x 113.0 x 70.0 mm
Weight: 390 g

Datasheet
Datasheet available for download (product datasheet provided).

Specifications

• Model: HMA30 D515
• Total power: 30 W
• Input ranges: AC 90–264 V, DC 100–300 V
• Outputs: 5 V / 3 A and 15 V / 1 A
• Typical efficiency: ≥74 %
• Mounting: DIN-rail
• Dimensions: 35.0 x 113.0 x 70.0 mm
• Weight: 390 g
• Certifications / compliance: CE, UL/cUL, RoHS, UKCA
