Chassis-mounted power supply PCMN15 D12

AC/DCdual-outputCE

Product overview
Decentralised AC/DC power supply for industrial applications, chassis-mount version of the PCMN series. Provides dual outputs +12 V (0.6 A) and -12 V (0.4 A) with a 12 W rating. Supports wide AC and DC input ranges and offers 3.3 kVrms isolation. Compact chassis design for integration in control cabinets and equipment.

Features

• Wide input range: AC 30 - 60 V / DC 30 - 70 V
• High isolation: 3.3 kVrms
• Dual outputs: +12 V (0.6 A) and -12 V (0.4 A)
• Efficiency ≥66 %
• Chassis mounting for decentralised installation

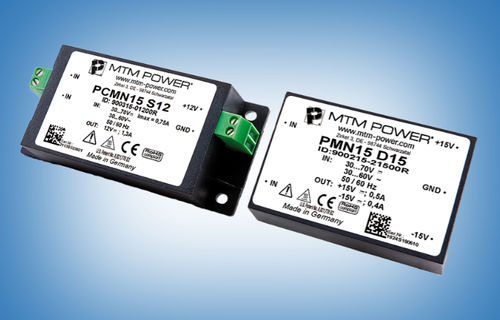

• Illustration: similar (product image representative)

Applications

• Decentralised power supply for industrial applications
• Powering electronic and electrical circuits in process measuring and control systems
• Laboratory equipment
• Systems and information technology

Technical Data (table)
Power: 12 W
AC input: 30 - 60 V
DC input: 30 - 70 V
Output voltage U1: 12 V
Output current I1: 0.6 A
Output voltage U2: -12 V
Output current I2: 0.4 A
Isolation: 3.3 kVrms
Efficiency: ≥66 %
Mounting type: Chassis mount
Dimensions: 110.0 x 50.8 x 23.0 mm
Weight: 200 g

Technical specifications

• Power: 12 W
• AC input range: 30 - 60 V
• DC input range: 30 - 70 V
• Output 1: 12 V, 0.6 A
• Output 2: -12 V, 0.4 A
• Isolation: 3.3 kVrms
• Efficiency: ≥66 %
• Mounting: Chassis mount
• Dimensions: 110.0 x 50.8 x 23.0 mm
• Weight: 200 g
