Printed circuit board power supply PMA15 T515

AC/DCtriple-outputCE

Product Overview

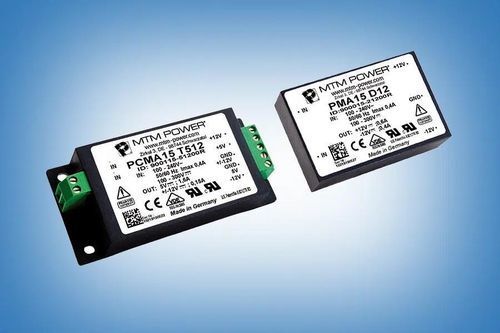

AC/DC power supply module PMA15 T515, 15 W, triple output (5 V / -15 V / +15 V). Designed for PCB mounting; chassis-mounted version (PCMA) also available. Suitable for decentralized power distribution in industrial electronic systems and laboratory equipment.

Features

• Wide input range: AC 90–264 V, DC 100–300 V
• Prepared for Class 1/2
• Overvoltage category 2
• Triple output: 5 V, -15 V, +15 V
• Designed for decentralized power supply in industrial applications

Applications

• Decentralized power supply for industrial automation and control equipment
• Powering electronic circuits in process measurement and control technology
• Laboratory instruments
• Systems and information technology
• Available for PCB mounting (PMA) and for chassis mounting (PCMA)

Technical Data (table)
Power: 15 W
AC Input: 90 - 264 V
DC Input: 100 - 300 V
Output Voltage U1: 5 V
Output Current I1: 1.6 A
Output Voltage U2: -15 V
Output Current I2: 0.15 A
Output Voltage U3: +15 V
Output Current I3: 0.15 A
Efficiency: ≥66 %
Mounting Type: PCB mount
Dimensions: 76.0 x 50.8 x 22.5 mm
Weight: 150 g

Documents / Additional Resources
Datasheet available
3D CAD drawing available

Technical specifications

• Rated power: 15 W
• Triple output configuration: 5 V / -15 V / +15 V
• Output currents: I1 = 1.6 A (5 V), I2 = 0.15 A (-15 V), I3 = 0.15 A (+15 V)
• Input voltage ranges: AC 90–264 V, DC 100–300 V
• Efficiency: ≥66 %
• Mounting: PCB mount (PMA) — chassis mounting available in PCMA variant
• Dimensions: 76.0 x 50.8 x 22.5 mm
• Weight: approx. 150 g
• Overvoltage category: 2
• Prepared for Class 1/2
• Certifications / compliance: CE, UL/cUL, RoHS, UKCA
