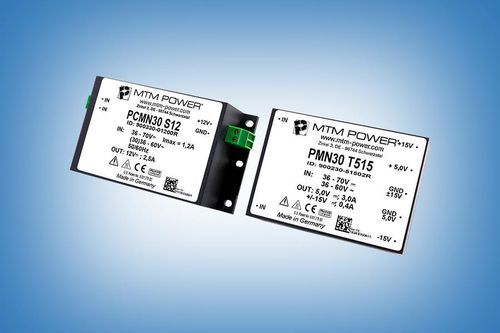

Chassis-mounted power supply PCMN30 S15

AC/DCsingle-outputCE

Product overview
AC/DC power supply module for chassis mounting providing 30 W output. Available as PCMN for chassis mounting and PMN for PCB mounting. Plug-and-play unit for decentralised power distribution in industrial applications.

Features

• Wide input range (AC and DC)
• High isolation: 3.3 kVrms
• Efficiency ≥75%

Applications

• Decentralised power supply for industrial systems
• Suitable for chassis mounting (PCMN) or PCB mounting (PMN)
• Plug-and-play supply for sensitive electronic subsystems

Technical data (table)
Power: 30 W
AC input: 36 - 60 V
DC input: 36 - 70 V
Output voltage U1: 15 V
Output current I1: 2.0 A
Efficiency: ≥75 %
Isolation: 3.3 kVrms
Mounting type: Chassis mount
Dimensions: 120.0 x 65.0 x 33.0 mm
Weight: 380 g

Certifications / conformity

• CE
• RoHS compliant
• UKCA

Technical specifications

• Power: 30 W
• AC input range: 36 - 60 V
• DC input range: 36 - 70 V
• Output voltage (U1): 15 V
• Output current (I1): 2.0 A
• Isolation: 3.3 kVrms
• Efficiency: ≥75 %
• Mounting type: Chassis mount (PCMN)
• Dimensions: 120.0 x 65.0 x 33.0 mm
• Weight: 380 g
