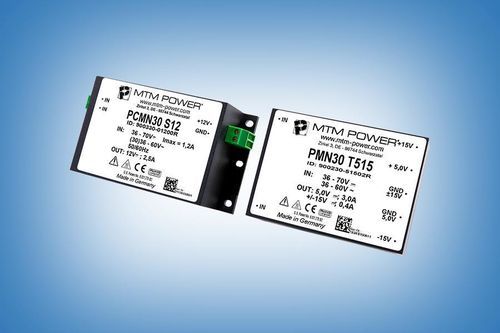

Chassis-mounted power supply PCMN30 S12
AC/DCsingle-outputregulated

Chassis-mounted power supply - PCMN30 S12 - MTM Power Messtechnik Mellenbach GmbH - AC/DC / single-output / regulated
Chassis-mounted power supply - PCMN30 S12 - MTM Power Messtechnik Mellenbach GmbH - AC/DC / single-output / regulated
Add to favorites
Compare this product
Go to the MTM Power Messtechnik Mellenbach GmbH website for more information

Characteristics

Mounting / format
chassis-mounted
Type
AC/DC
Output
single-output, regulated
Certifications
RoHS, CE
Other characteristics
low-voltage, wide input range, galvanically-isolated
Input voltage

Min.: 36 V

Max.: 70 V

Output voltage

Min.: 12 V

Max.: 12 V

Current

Min.: 2.5 A

Max.: 2.5 A

Power

Min.: 30 W
(0.04 hp)

Max.: 30 W
(0.04 hp)

Description

Product Overview
AC/DC power supply 30 W by MTM Power, chassis-mount version of the PMN/PCMN30 low-voltage modules series.

Features
  • Wide input range
  • High isolation: 3.3 kVrms


Applications
  • Decentralised power supply for industrial applications
  • Available for PCB-mounting (PMN) and for chassis mounting (PCMN)
  • Plug-and-play power supply unit for sensitive electrical subsystems


Technical Data PCMN30 S12 (table extracted)
Power: 30 W
AC Input: 36 - 60 V
DC Input: 36 - 70 V
Output Voltage U1: 12 V
Output Current I1: 2.5 A
Efficiency: 675 %
Mounting Type: Chassis Mount
Dimensions: 120.0 x 65.0 x 33.0 mm
Weight: 380 g

Certifications
  • CE
  • RoHS compliance
  • UKCA


Technical specifications
  • Power: 30 W
  • AC input range: 36 - 60 V
  • DC input range: 36 - 70 V
  • Output voltage: 12 V (U1)
  • Output current: 2.5 A (I1)
  • Efficiency: 675 %
  • Isolation: 3.3 kVrms
  • Mounting type: Chassis mount
  • Dimensions: 120.0 x 65.0 x 33.0 mm
  • Weight: 380 g
