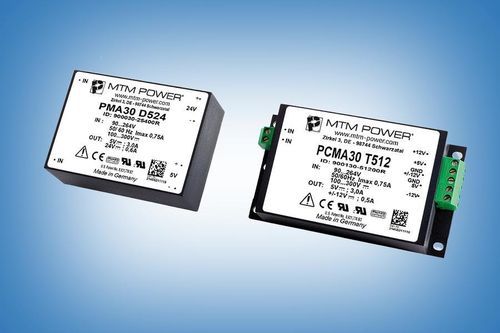

AC/DC module PCMA30 D524 — chassis-mount dual-output power supply for industrial electronics. Note: marketing text on some pages references 15 W while the technical data table lists rated power 29.4 W (see technical data).

Features

• Wide input range: 90–264 V AC / 100–300 V DC
• Prepared for Class 1/2
• Overvoltage category II

Applications

• Decentralised power supply for industrial equipment
• Available for PCB mounting (PMA) and chassis mounting (PCMA)
• Supplying electronic/electrical circuits in process measurement & control, laboratory equipment, systems and IT

Technical data (table)
Power: 29.4 W
AC Input: 90 - 264 V
DC Input: 100 - 300 V
Output Voltage U1: 5 V
Output Current I1: 3 A
Output Voltage U3: 24 V
Output Current I3: 0.6 A
Efficiency: ≥74 %
Mounting Type: Chassis mount
Dimensions: 120.0 x 65.0 x 33.0 mm
Weight: 380 g

Characteristics / specifications

• Model name: PCMA30 D524
• Dual outputs: 5 V / 24 V
• Output currents: 3 A (5 V), 0.6 A (24 V)
• Wide AC input range: 90–264 V AC
• Wide DC input range: 100–300 V DC
• Rated power (technical table): 29.4 W
• Efficiency: ≥74 %
• Overvoltage category: II
• Prepared for Class 1/2
• Mounting: chassis mount
• Dimensions (L x W x H): 120.0 x 65.0 x 33.0 mm
• Weight: 380 g
• Typical applications: process measurement & control, laboratory equipment, systems and IT
