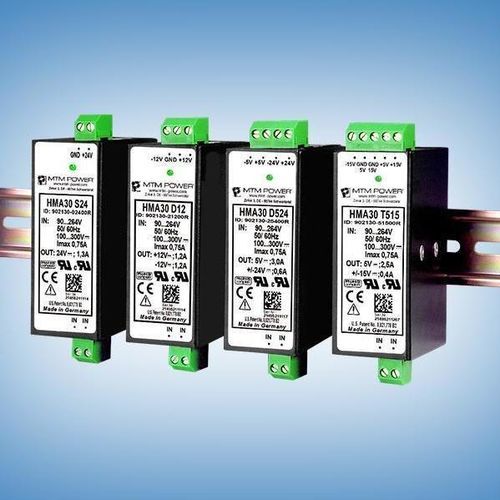

DIN rail power supply HMA30 D524

AC/DCdual-outputCE

Product overview
DIN-rail AC/DC power supply module HMA30 D524 with dual outputs (5 V and 24 V) and nominal power 29.4 W. Compact form factor for industrial DIN-rail installations where two voltage rails are required.

Features

• Wide input range: 90–264 VAC and 100–300 VDC
• Dual isolated outputs: 5 V @ 3 A and 24 V @ 0.6 A
• Nominal output power: 29.4 W
• Compact DIN-rail mounting: 35.0 x 113.0 x 70.0 mm
• Efficiency ≥ 74%

Applications

• Power supply for devices mounted on DIN rail in control cabinets
• Suitable for process measurement and control systems, laboratory equipment, embedded systems and IT components

Datasheet
Datasheet available for this product (downloadable from product documentation).

Technical Data HMA30 D524
Power: 29.4 W
AC Input: 90 - 264 V
DC Input: 100 - 300 V
Output U1: 5 V, I1: 3 A
Output U3: 24 V, I3: 0.6 A
Efficiency: ≥74 %
Mounting Type: DIN-rail
Dimensions: 35.0 x 113.0 x 70.0 mm
Weight: 390 g

Specifications

• Power: 29.4 W
• AC Input: 90 - 264 V
• DC Input: 100 - 300 V
• Outputs: U1 = 5 V @ 3 A; U3 = 24 V @ 0.6 A
• Efficiency: ≥74 %
• Mounting: DIN rail
• Dimensions: 35.0 x 113.0 x 70.0 mm
• Weight: 390 g
