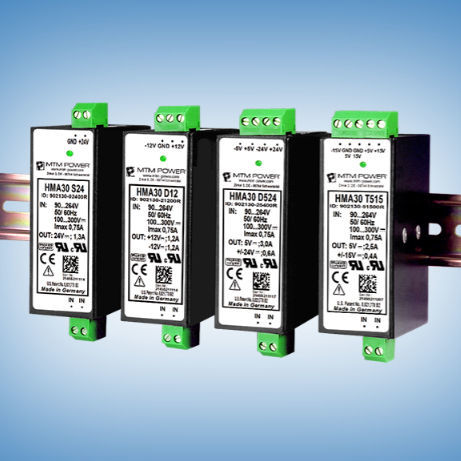

DIN rail power supply HMA30 S48

AC/DCsingle-outputCE

Product
HMA30 S48 - AC/DC power supply module for DIN-rail mounting. Output: 48 V, approx. 30 W class, intended to supply electronic and electrical circuits in industrial process measurement and control environments.

Features

• Wide input range (AC 90–264 V / DC 100–300 V)

Applications

• Power supply for DIN rail mounting
• Supplying electronic and electrical circuits in process measurement and control, laboratory equipment, and system & information technology

Technical Data HMA30 S48

• Power: 28.8 W
• AC Input: 90 - 264 V
• DC Input: 100 - 300 V
• Output Voltage U1: 48 V
• Output Current I1: 0.6 A
• Efficiency: 89 %
• Mounting Type: DIN rail
• Dimensions: 35.0 x 113.0 x 70.0 mm
• Weight: 390 g

Certifications & Compliance

• CE
• UL / cUL
• RoHS
• UKCA

Documentation
Datasheet (PDF) available for download.

Specifications / technical data

• Power: 28.8 W
• AC Input: 90 - 264 V
• DC Input: 100 - 300 V
• Output Voltage U1: 48 V
• Output Current I1: 0.6 A
• Efficiency: 89 %
• Mounting Type: DIN rail
• Dimensions: 35.0 x 113.0 x 70.0 mm
• Weight: 390 g
