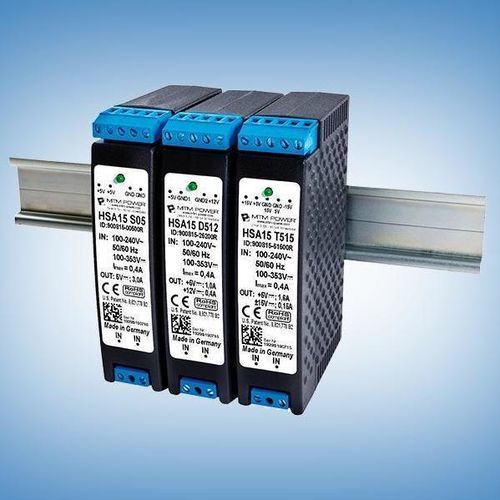

DIN rail power supply HSA15 T515

AC/DCtriple-outputCE

Product overview
AC/DC DIN-rail power supply module HSA15 T515 with triple output (5 V and ±15 V). Nominal output power 12.5 W. Compact DIN-rail design for industrial control, laboratory and embedded applications.

Features

• Wide input range: AC 90–264 V / DC 100–300 V
• Triple output: 5 V @ 1.6 A, -15 V @ 0.15 A, +15 V @ 0.15 A
• DIN-rail mounting
• Efficiency ≥ 72%
• Compact dimensions: 29.0 x 115.0 x 76.0 mm; weight: 250 g

Applications

• Power supply for DIN-rail systems and control cabinets
• Supplying electronics in process measurement and control technology
• Laboratory and test equipment
• Embedded systems and IT devices requiring multiple rails

Technical data
Power: 12.5 W
AC input: 90 - 264 V
DC input: 100 - 300 V
Output 1: 5 V @ 1.6 A
Output 2: -15 V @ 0.15 A
Output 3: +15 V @ 0.15 A
Efficiency: ≥72%
Mounting type: DIN rail
Dimensions (W×H×D): 29.0 x 115.0 x 76.0 mm
Weight: 250 g

Specifications

• Power: 12.5 W
• AC input voltage range: 90–264 V
• DC input voltage range: 100–300 V
• Outputs: 5 V / ±15 V
• Output currents: 1.6 A / 0.15 A / 0.15 A
• Efficiency: ≥72%
• Mounting: DIN-rail
• Dimensions: 29.0 x 115.0 x 76.0 mm
• Weight: 250 g
