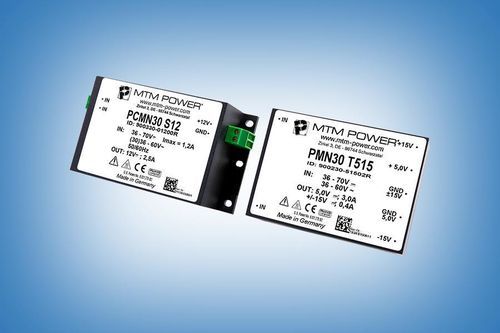

Chassis-mounted power supply PCMN30 T515

AC/DCtriple-outputCE

Overview
The PCMN30 T515 is a low-voltage module (PMN/PCMN30 series) designed for NVDC systems. It supplies regulated multi-output voltages for decentralised industrial power distribution and sensitive electronic subsystems.

Features

• Wide input range: AC 36–60 V / DC 36–70 V
• Galvanic isolation 3.3 kVrms
• Chassis mounting (PCMN series); PCB version available (PMN)

Applications

• Decentralised power supply for industrial control and automation
• Plug-and-play supply for sensitive electrical/electronic subsystems
• Available in PCB-mount (PMN) and chassis-mount (PCMN) configurations

Technical Data PCMN30 T515
Power: 27 W
AC input: 36 - 60 V
DC input: 36 - 70 V
Output voltage U1: 5 V
Output current I1: 3.0 A
Output voltage U2: -15 V
Output current I2: 0.4 A
Output voltage U3: +15 V
Output current I3: 0.4 A
Efficiency: 68 %
Isolation: 3.3 kVrms
Mounting type: Chassis mount
Dimensions: 120.0 x 65.0 x 33.0 mm
Weight: 380 g

Technical specifications

• Power — 27 W
• AC input — 36 - 60 V
• DC input — 36 - 70 V
• Output U1 — 5 V / 3.0 A
• Output U2 — -15 V / 0.4 A
• Output U3 — +15 V / 0.4 A
• Efficiency — 68 %
• Isolation — 3.3 kVrms
• Mounting type — Chassis mount
• Dimensions — 120.0 x 65.0 x 33.0 mm
• Weight — 380 g
