Chassis-mounted power supply PCMN15 S12

AC/DCsingle-outputCE

General

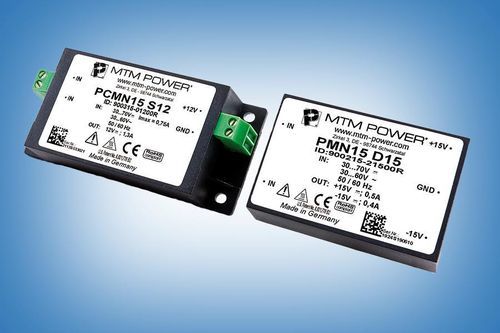

Low-voltage AC/DC power supply module from the PMN/PCMN15 series. Chassis-mount version (PCMN) designed for integration in control cabinets and industrial enclosures. Illustration similar.

Features

• Wide input range (AC: 30 - 60 V / DC: 30 - 70 V)
• Isolation: 3,3 kVrms

Applications

• Decentralised power supply for industrial automation and process control
• Available for PCB-mounting (PMN) and chassis mounting (PCMN)
• Powering electronic and electrical circuits in instrumentation, laboratory equipment, systems and IT

Technical Data (table)
Power: 15.6 W
AC Input: 30 - 60 V
DC Input: 30 - 70 V
Output Voltage U1: 12 V
Output Current I1: 1.3 A
Efficiency: ≥73 %
Mounting Type: Chassis Mount
Dimensions: 110.0 x 50.8 x 23.0 mm
Weight: 200 g

Certifications / Compliance

• CE
• RoHS
• UKCA

Datasheet
A product datasheet is available (Datasheet filename: pmn-pcmn15.pdf).

Specifications

• Power: 15.6 W
• AC Input range: 30 - 60 V
• DC Input range: 30 - 70 V
• Output voltage: 12 V
• Output current: 1.3 A
• Efficiency: ≥73 %
• Isolation: 3,3 kVrms
• Mounting type: Chassis Mount
• Dimensions: 110.0 x 50.8 x 23.0 mm
• Weight: 200 g
