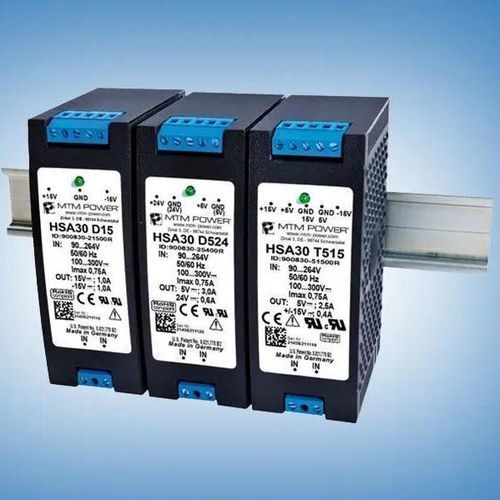

DIN rail power supply HSA30 T515

AC/DCtriple-outputCE

Product Overview
DIN Rail module HSA30 T515 — AC/DC power supply for DIN-rail mounting. Triple-output configuration providing 5 V, -15 V and 15 V rails, suitable for industrial control and instrumentation applications.

Features

• Wide input range
• Triple output: 5 V / -15 V / 15 V
• Compact DIN-rail mounting design
• Certifications shown: CE, UL/cUL, RoHS compliance, UKCA

Applications

• Power supply for DIN rail mounting
• Supplying electronic and electrical circuits in process measuring and control technology, laboratory equipment, and systems & information technology

Technical Data
Power: 24.5 W
AC Input: 90 - 264 V
DC Input: 100 - 300 V
Output Voltage U1: 5 V
Output Current I1: 2.5 A
Output Voltage U2: -15 V
Output Current I2: 0.4 A
Output Voltage U3: 15 V
Output Current I3: 0.4 A
Efficiency: 6 % or greater
Mounting Type: DIN Rail Mount
Dimensions: 43.0 x 115.0 x 75.0 mm
Weight: 650 g

Notes
Datasheet available for download (product page).
