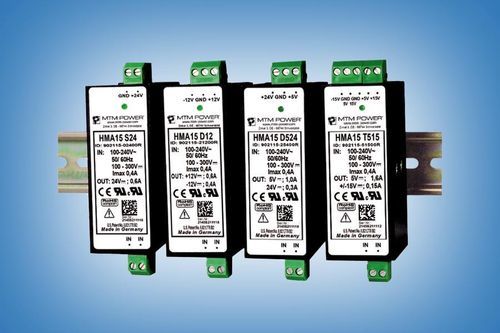

DIN rail power supply HMA15 D524

AC/DCdual-outputCE

Product Description
DIN rail module HMA15 D524 is an AC/DC dual-output power supply designed for continuous operation in industrial control cabinets and equipment. It provides two low-voltage outputs for electronic and electrical circuits and is optimized for space-saving DIN-rail mounting.

Features

• Wide input range (AC 90–264 V / DC 100–300 V)
• Dual output: 5 V (1.0 A) and 24 V (0.3 A)
• DIN-rail mounting format
• Compact dimensions for space-saving installation

Applications

• Power supply for DIN-rail mounted control and automation equipment
• Supplying electronic and electrical circuits in process measurement and control systems
• Laboratory equipment
• IT and system equipment

Technical Data (excerpt)
Power: 12.2 W
AC input: 90 - 264 V
DC input: 100 - 300 V
Output Voltage U1: 5 V
Output Current I1: 1.0 A
Output Voltage U3: 24 V
Output Current I3: 0.3 A
Efficiency: ≥66 %
Mounting Type: DIN-rail
Dimensions: 35.0 x 113.0 x 70.0 mm
Weight: 390 g

Datasheet
Datasheet available for download (PDF).

Characteristics / Technical specifications

• Model: HMA15 D524
• Type: AC/DC power supply, DIN-rail mount
• Total power: 12.2 W
• Dual output: 5 V / 1.0 A and 24 V / 0.3 A
• AC input voltage: 90 – 264 V
• DC input voltage: 100 – 300 V
• Efficiency: ≥66 %
• Dimensions (W x H x D): 35.0 x 113.0 x 70.0 mm
• Weight: 390 g
• Mounting: DIN-rail
• Approvals / Compliance: CE, UL/cUL, RoHS, UKCA (certificates shown on product page)
