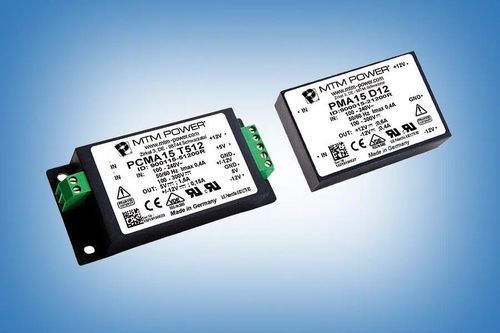

Printed circuit board power supply PMA15 D12

AC/DCdual-outputCE

Description
The PMA15 D12 is an AC/DC power module for PCB mounting providing dual regulated outputs of +12 V and -12 V with a total output power of 15 W. It is intended for decentralized power supply in industrial and information technology systems and is designed for long service life while meeting overvoltage category requirements.

Features

• Wide input range (AC 90–264 V / DC 100–300 V)
• Prepared for Class 1/2
• Overvoltage Category 2
• Dual output: +12 V and -12 V
• Total output power: 15 W
• PCB mounting
• Efficiency ≥ 66 %

Applications

• Decentralised power supply for industrial applications
• Supplying electronic and electrical circuits in process measurement and control technology
• Laboratory equipment
• Systems and information technology

Technical data table
Power: 15 W
AC Input: 90 - 264 V
DC Input: 100 - 300 V
Output Voltage U1: +12 V
Output Current I1: 0.6 A
Output Voltage U2: -12 V
Output Current I2: 0.4 A
Efficiency: ≥ 66 %
Mounting Type: PCB mount
Dimensions: 76.0 x 50.8 x 22.5 mm
Weight: 150 g

Technical specifications

• Model: PMA15 D12
• Power: 15 W
• Input (AC): 90 - 264 V
• Input (DC): 100 - 300 V
• Outputs: U1 = +12 V (0.6 A), U2 = -12 V (0.4 A)
• Efficiency: ≥ 66 %
• Mounting: PCB mount
• Dimensions: 76.0 x 50.8 x 22.5 mm
• Weight: 150 g
• Prepared for Class 1/2; Overvoltage Category 2
• Datasheet (PDF) and 3D CAD drawing available
