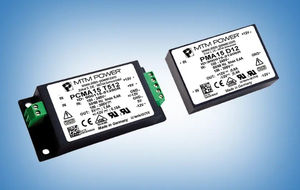

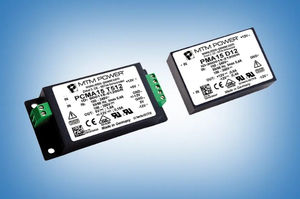

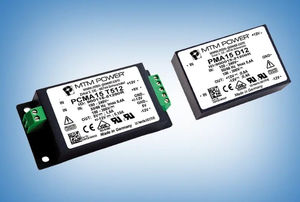

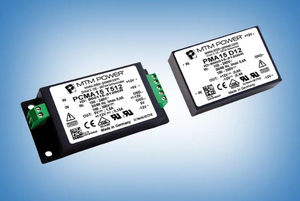

Chassis-mounted power supply PCMA15 D12

AC/DCdual-outputRoHS

Product overview
AC/DC power supply module with dual outputs ±12 V, rated 12 W. Chassis-mounted design for decentralised power distribution in industrial equipment, control and measurement systems.

Key features

• 12 W output power
• Dual outputs: +12 V (0.6 A) and -12 V (0.4 A)
• Wide AC input range 90–264 V and DC input option 100–300 V
• Prepared for Class 1/2 and Overvoltage Category II
• Chassis mounting for easy integration into control cabinets

Downloads

• Datasheet (PDF)
• 3D CAD drawing (STP)

Applications

• Decentralised power supply for industrial installations

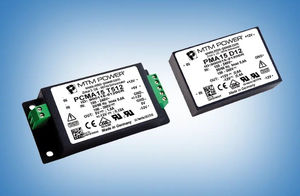

• Available in PCB-mount (PMA) and chassis-mount (PCMA) variants
• Powering electronic circuits in process measurement and control, laboratory equipment and IT systems

Technical data PCMA15 D12

• Power: 12 W
• AC input: 90 - 264 V
• DC input: 100 - 300 V
• Output U1: +12 V, I1: 0.6 A
• Output U2: -12 V, I2: 0.4 A
• Efficiency: ≥66 %
• Mounting type: Chassis mount
• Dimensions: 111.0 x 52.4 x 24.5 mm
• Weight: 200 g
• Approvals / Compliance: CE, UL/cUL, RoHS, UKCA
