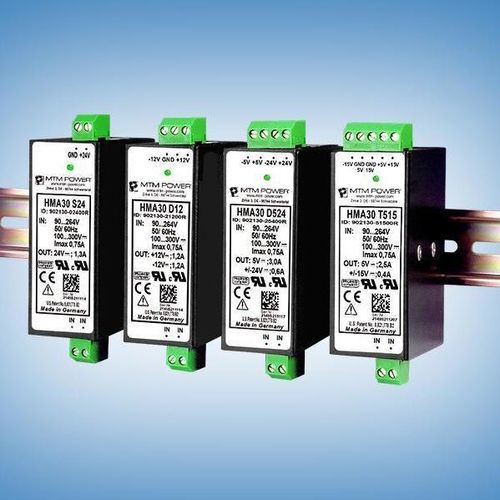

DIN rail power supply HMA30 T515

AC/DCtriple-outputCE

Overview
DIN rail module HMA30 T515 — AC/DC power supply with triple outputs delivering a combined 30 W. Designed for DIN-rail mounting in control cabinets and industrial equipment. Provides 5 V and ±15 V outputs with wide input range for AC and DC supplies.

Features

• Power: 30 W
• Triple outputs: 5 V / -15 V / +15 V
• Wide input range: AC 90–264 V, DC 100–300 V
• DIN-rail mounting (35 mm rail)
• Efficiency ≥ 73%
• Compact dimensions: 35.0 x 113.0 x 70.0 mm; Weight: 390 g

Applications

• Power supply for DIN-rail mounted control and automation modules
• Supplying measurement and process control electronics
• Laboratory and test equipment
• Industrial and IT systems requiring multiple voltages

Approvals / Compliance
CE, UL/cUL, RoHS, UKCA

Technical specifications

• Output power: 30 W
• AC input: 90 - 264 V
• DC input: 100 - 300 V
• Output U1: 5 V — I1: 3 A
• Output U2: -15 V — I2: 0.5 A
• Output U3: +15 V — I3: 0.5 A
• Efficiency: ≥ 73%
• Mounting type: DIN Rail Mount
• Dimensions: 35.0 x 113.0 x 70.0 mm
• Weight: 390 g
