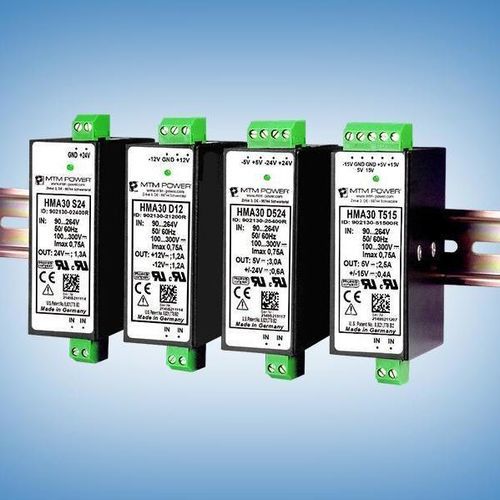

DIN rail power supply HMA30 S24

AC/DCsingle-outputCE

Product Overview
AC/DC power supply for DIN rail mounting. Rated power 31.2 W with 24 V DC output and 1.3 A output current. Accepts wide AC and DC input ranges for industrial applications.

Features

• Wide input range: AC 90 - 264 V, DC 100 - 300 V
• Efficiency ≥85 %
• Compact dimensions: 35.0 x 113.0 x 70.0 mm

Applications

• Power supply for DIN-rail mounted control and automation equipment
• Supplying electronic and electrical circuits in process measurement and control, laboratory equipment, systems and information technology

Documents

• Datasheet (PDF)

Technical Data HMA30 S24
Power: 31.2 W
AC Input: 90 - 264 V
DC Input: 100 - 300 V
Output Voltage U1: 24 V
Output Current I1: 1.3 A
Efficiency: ≥85 %
Mounting Type: DIN rail mount
Dimensions: 35.0 x 113.0 x 70.0 mm
Weight: 390 g

Technical specifications

• Power: 31.2 W
• AC Input: 90 - 264 V
• DC Input: 100 - 300 V
• Output Voltage U1: 24 V
• Output Current I1: 1.3 A
• Efficiency: ≥85 %
• Mounting Type: DIN rail mount
• Dimensions: 35.0 x 113.0 x 70.0 mm
• Weight: 390 g
