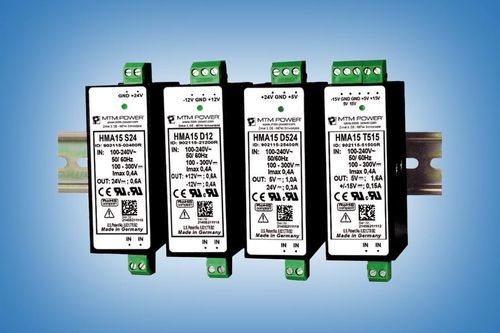

DIN rail power supply HMA15 S24

AC/DCsingle-outputCE

Product Overview
DIN-rail module HMA15 S24: compact AC/DC power supply for industrial control and instrumentation. DIN-rail mounting. Rated power 14.4 W. Output voltage 24 V DC. Dimensions 35.0 x 113.0 x 70.0 mm; weight 390 g.

Features

• Wide input range (AC 90–264 V / DC 100–300 V)
• Efficiency ≥78 %

Applications

• Power supply for DIN rail mounting
• Supplying electronic and electrical circuits in process measurement and control technology, laboratory equipment, systems and information technology

Technical Data (table)
Power: 14.4 W
AC Input: 90 - 264 V
DC Input: 100 - 300 V
Output Voltage U1: 24 V
Output Current I1: 0.6 A
Efficiency: ≥78 %
Mounting Type: DIN Rail Mount
Dimensions: 35.0 x 113.0 x 70.0 mm
Weight: 390 g

Certifications

• CE
• UL / cUL
• RoHS
• UKCA

Datasheet / Documents
Datasheet available (PDF).

Technical specifications

• Power: 14.4 W
• AC input range: 90–264 V
• DC input range: 100–300 V
• Output voltage: 24 V
• Output current: 0.6 A
• Efficiency: ≥78 %
• Mounting: DIN rail
• Dimensions (W x H x D): 35.0 x 113.0 x 70.0 mm
• Weight: 390 g
