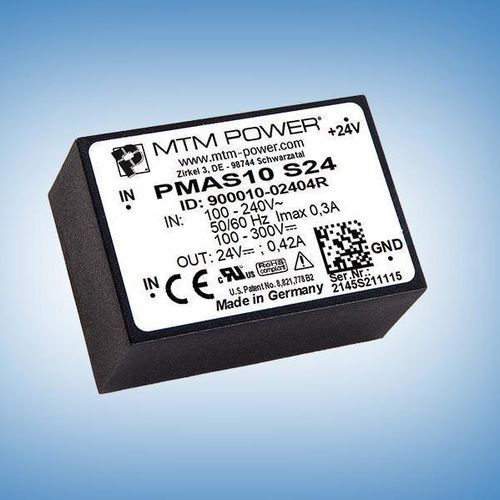

Printed circuit board power supply PMAS10 S24

AC/DCsingle-outputCE

Product overview
AC/DC module PMAS10 S24 for PCB mounting. 10 W power supply with 24 V output, wide AC and DC input ranges suitable for decentralised industrial power applications.

Features

• Wide input range
• Smallest dimensions
• Overvoltage category 2

Applications

• Decentralised power supply for industrial applications
• Chassis mounting
• Supply of electronic and electrical circuits in process measuring and control technology, laboratory equipment, systems and information technology

Downloads (available)

• Datasheet (PDF)
• 3D CAD drawing (STEP)

Technical Data PMAS10 S24
Power: 10 W
AC Input: 90 - 264 V
DC Input: 100 - 300 V
Output Voltage U1: 24 V
Output Current I1: 0.42 A
Efficiency: ≥77 %
Mounting Type: PCB mount
Dimensions: 52.0 x 36.5 x 24.0 mm
Weight: 65 g

Specifications

• Power: 10 W
• AC input voltage range: 90 - 264 V
• DC input voltage range: 100 - 300 V
• Output voltage (U1): 24 V
• Output current (I1): 0.42 A
• Efficiency: ≥77 %
• Mounting type: PCB mount
• Dimensions: 52.0 x 36.5 x 24.0 mm
• Weight: 65 g
• Overvoltage category: 2
