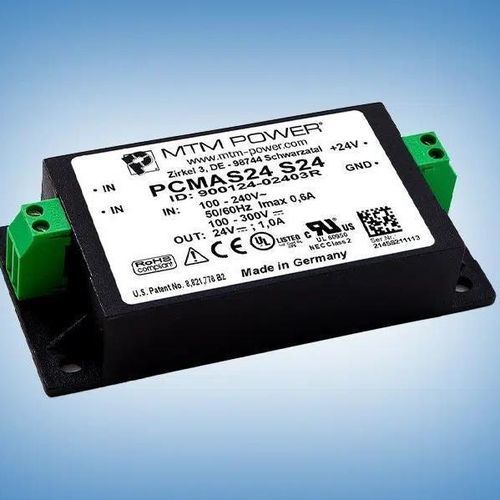

Chassis-mounted power supply PCMAS24 S24

AC/DCsingle-outputCE

Overview
AC/DC module PCMAS24 S24 is a chassis-mount power supply delivering 24 W output power and a 24 V output voltage. Designed for decentralized power distribution in industrial environments where compact dimensions and wide input range are required.

Features

• Wide input range
• Compact dimensions
• Overvoltage category 2

Applications

• Decentralised power supply for industrial applications
• Available for PCB mounting (PMAS) and for chassis mounting (PCMAS)
• Powering electronic and electrical circuits in process measurement and control technology, laboratory equipment, systems and IT

Technical Data
Power: 24 W
AC Input: 90 - 264 V
DC Input: 100 - 300 V
Output Voltage U1: 24 V
Output Current I1: 1.0 A
Efficiency: ≥83%
Mounting Type: Chassis mount
Dimensions: 111.0 x 52.4 x 24.5 mm
Weight: 200 g

Certifications

• CE
• UL / cUL
• RoHS compliance
• UKCA

Specifications / technical specifications

• Power: 24 W
• AC Input: 90 - 264 V
• DC Input: 100 - 300 V
• Output Voltage: 24 V
• Output Current: 1.0 A
• Efficiency: ≥83%
• Mounting Type: Chassis mount
• Dimensions: 111.0 x 52.4 x 24.5 mm
• Weight: 200 g
• Overvoltage Category: 2
