Chassis-mounted power supply PCMA30 S24

AC/DCsingle-outputCE

Overview

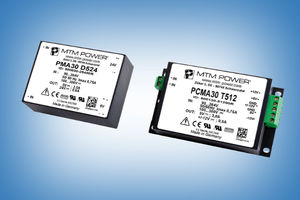

AC/DC power supply module for chassis mounting. PCMA30 S24 provides a compact decentralised power source for industrial control and measurement equipment. Available variants include PCB-mounted (PMA) and chassis-mounted (PCMA) versions.

Key features

• Wide input range: 90–264 VAC / 100–300 VDC
• Prepared for Class 1/2 installation
• Overvoltage Category II
• High efficiency ≥85 %

Applications

• Decentralised power supply for industrial automation and control cabinets
• Powering electronic circuits in process measurement and control systems, laboratory equipment
• Embedded systems and IT devices requiring 24 V supply

Technical data

• Power: 31.2 W
• AC input range: 90 - 264 V
• DC input range: 100 - 300 V
• Output voltage (U1): 24 V
• Output current (I1): 1.3 A
• Efficiency: ≥85 %
• Mounting type: Chassis mount
• Dimensions: 120.0 x 65.0 x 33.0 mm
• Weight: 380 g

Certifications

• CE
• UL / cUL
• RoHS compliant
• UKCA

Datasheet
Datasheet available in PDF format for the PCMA30 series (manufacturer's product datasheet).
