Printed circuit board power supply PMN30 S12

AC/DCsingle-outputCE

Product overview

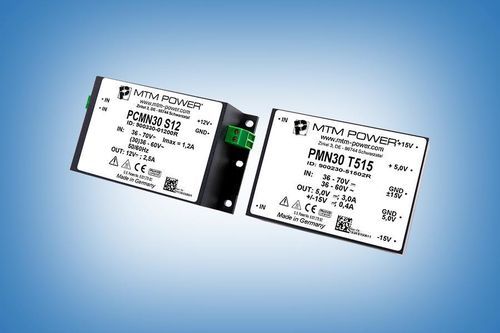

The PMN30 S12 is a 30 W AC/DC power supply designed for PCB mounting (PMN series). It accepts a wide AC and DC input range and provides a regulated 12 V output at up to 2.5 A. A chassis-mounted variant (PCMN) is available for applications requiring alternative installation.

Key features

• Wide input range: AC 36–60 V, DC 36–70 V
• Output: 12 V DC, 2.5 A
• Isolation: 3.3 kVrms
• Efficiency: ≥75%
• Compact PCB-mount form factor

Applications

• Decentralised power supply for industrial control systems
• PCB-mounted power module for machinery and automation equipment
• Plug-and-play supply for sensitive electronic subsystems

Technical data PMN30 S12
Power: 30 W
AC input: 36 - 60 V
DC input: 36 - 70 V
Output voltage U1: 12 V
Output current I1: 2.5 A
Efficiency: ≥75%
Isolation: 3.3 kVrms
Mounting type: PCB mount (PMN)
Dimensions: 90.5 x 65.5 x 33.5 mm
Weight: 340 g

Certifications

• CE
• RoHS
• UKCA
