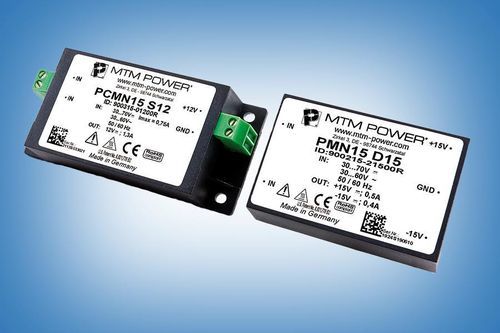

Printed circuit board power supply PMN15 S05

AC/DCsingle-outputCE

Product overview
The PMN15 S05 is a 15 W AC/DC power supply module designed for PCB mounting. It provides a regulated 5 V output with a compact footprint and high isolation, suitable for decentralised industrial power distribution and electronic equipment integration.

Features

• Wide input range (AC: 30–60 V, DC: 30–70 V)
• High isolation: 3.3 kVrms
• PCB-mount design (PMN variant)
• Efficiency ≥ 66 %

Applications

• Decentralised power supply for industrial systems
• Powering electronics in process measurement and control technology
• Laboratory and test equipment
• Systems and information technology
• Also available as chassis-mount (PCMN) in the PMN/PCMN15 family

Technical Data (summary)
Power: 15 W
AC input: 30 - 60 V
DC input: 30 - 70 V
Output voltage U1: 5 V
Output current I1: 3.0 A
Efficiency: ≥ 66 %
Mounting type: PCB mount
Dimensions: 76.0 x 50.7 x 22.7 mm
Weight: 150 g

Certifications / Compliance

• CE
• RoHS compliance
• UKCA

Technical specifications

• Commercial name: PMN15 S05
• Rated power: 15 W
• AC input voltage range: 30 - 60 V
• DC input voltage range: 30 - 70 V
• Nominal output voltage (U1): 5 V
• Nominal output current (I1): 3.0 A
• Isolation voltage: 3.3 kVrms
• Efficiency: ≥ 66 %
• Mounting: PCB mount (PMN)
• Dimensions (L x W x H): 76.0 x 50.7 x 22.7 mm
• Weight: 150 g
• Available variants: PCB-mount (PMN) and chassis-mount (PCMN) in the PMN/PCMN15 family
• Datasheet available
