DIN rail power supply HMA30 D512

AC/DCdual-outputCE

Product Overview

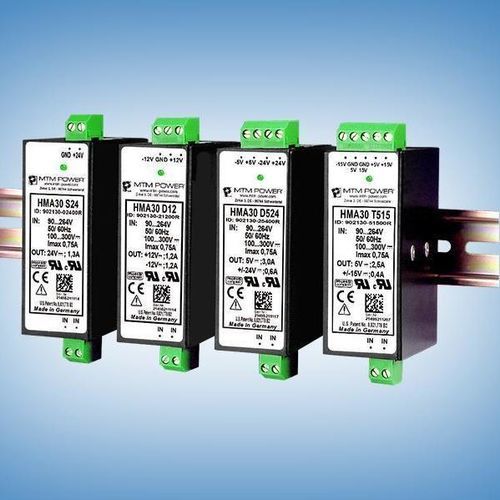

DIN rail module HMA30 D512 by MTM Power. AC/DC power supply with dual outputs, total power approx. 29.4 W. Mounting type: DIN rail.

Features

• Wide input range (90–264 VAC / 100–300 VDC)

Applications

• Power supply for DIN rail mounting
• Supplying electronic and electrical circuits in process measurement and control, laboratory equipment, and IT systems

Technical Data
Power: 29.4 W
AC Input: 90 - 264 V
DC Input: 100 - 300 V
Output Voltage U1: 5 V
Output Current I1: 3 A
Output Voltage U3: 12 V
Output Current I3: 1.2 A
Efficiency: ≥74 %
Mounting Type: DIN Rail Mount
Dimensions: 35.0 x 113.0 x 70.0 mm
Weight: 390 g

Technical specifications

• Power: 29.4 W
• AC input range: 90 - 264 V
• DC input range: 100 - 300 V
• Output 1: 5 V, 3 A
• Output 3: 12 V, 1.2 A
• Efficiency: ≥74 %
• Mounting: DIN Rail
• Dimensions: 35.0 x 113.0 x 70.0 mm
• Weight: 390 g
• Certifications: CE, UL/cUL, RoHS compliance, UKCA (as shown on product page)
