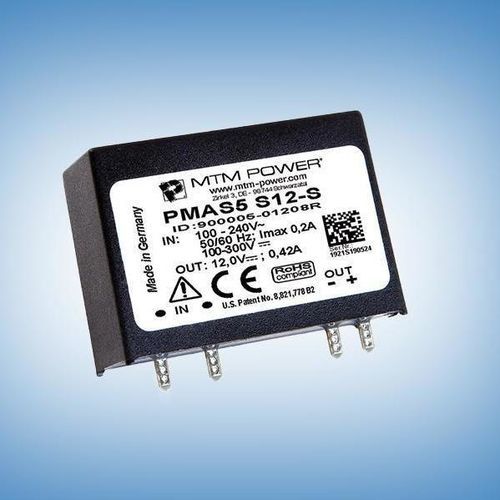

Printed circuit board power supply PMAS5 S12-S

AC/DCsingle-outputCE

Product overview
AC/DC power module PMAS5 S12-S: compact 5 W converter delivering a 12 V output for PCB-mount applications. Designed for decentralised industrial power supply with wide input range and vertical mounting capability.

Features

• Wide input range (AC 90–264 V / DC 100–300 V)
• Very compact dimensions (42.0 x 30.0 x 18.2 mm)
• Overvoltage category 2
• High reliability and long lifetime
• Robust design suitable for vertical PCB mounting

Applications

• Decentralised power supply for industrial equipment
• Direct PCB mounting in control and automation systems
• Plug-and-play power unit for sensitive electronic subsystems

Certifications / Compliance

• CE
• UL / cUL
• RoHS
• UKCA

Technical Data (table)
Power: 5 W
AC Input: 90 - 264 V
DC Input: 100 - 300 V
Output Voltage U1: 12 V
Output Current I1: 0.42 A
Efficiency: ≥70 %
Mounting Type: PCB mount
Dimensions: 42.0 x 30.0 x 18.2 mm
Weight: 50 g

Characteristics / Technical specifications

• Power: 5 W
• AC input range: 90 - 264 V
• DC input range: 100 - 300 V
• Output voltage: 12 V
• Output current: 0.42 A
• Efficiency: ≥70 %
• Mounting type: PCB mount
• Dimensions: 42.0 x 30.0 x 18.2 mm
• Weight: 50 g
• Overvoltage category: 2
• Intended for vertical mounting and decentralised industrial PCB applications
• Certifications: CE, UL/cUL, RoHS, UKCA
