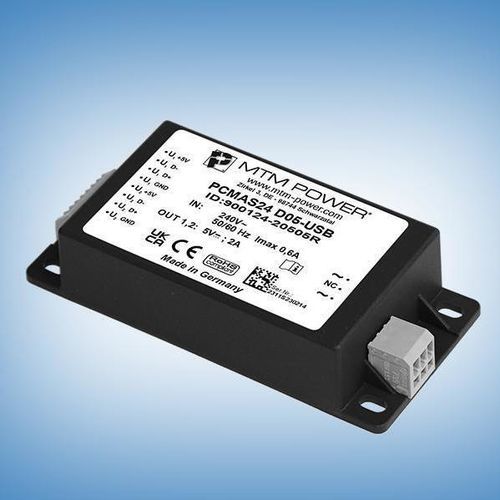

Chassis-mounted power supply PCMAS24 D05

AC/DCdual-outputCE

Product overview
AC/DC power supply and USB charger PCMAS24 D05-USB designed for installation in railway vehicles and for powering sensitive electrical subsystems. Provides two independent USB outputs for device charging and low-voltage provisioning.

Features

• USB charger for railway vehicles with two USB outputs
• ESD-protected charging ports to safeguard connected devices
• Wide input range for AC and DC operation (100–240 VAC / 100–353 VDC)
• Nominal output power 21.4 W with two 5.1 V / 2.1 A outputs
• High efficiency (≥ 83%) and compact chassis-mount design

Applications

• USB battery charging and device power in railway vehicles
• Chassis mount for integration into vehicle electrical racks
• Plug-and-play power provisioning for sensitive subsystems and passenger electronics

Technical Data PCMAS24 D05-USB
Power: 21.4 W
AC Input: 100 - 240 V
DC Input: 100 - 353 V
Output Voltage U1: 5.1 V
Output Current I1: 2.1 A
Output Voltage U2: 5.1 V
Output Current I2: 2.1 A
Efficiency: ≥ 83 %
Mounting Type: Chassis mount
Dimensions: 111.0 x 50.8 x 23.0 mm
Weight: 200 g

Certifications / Compliance
CE, UL/cUL, RoHS compliance, UKCA.

Technical specifications

• Model: PCMAS24 D05-USB
• Nominal output power: 21.4 W
• Wide AC input range: 100–240 VAC
• Wide DC input range: 100–353 VDC
• Two USB outputs each nominally 5.1 V / 2.1 A
• Efficiency ≥ 83%
• Mounting: chassis mount
• Dimensions: 111.0 x 50.8 x 23.0 mm
• Weight: 200 g
• ESD-protected charging ports
• Intended for railway vehicle applications and plug-and-play provisioning of sensitive subsystems
• Datasheet available (PDF)
