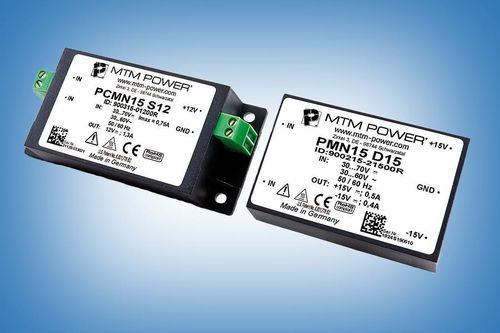

Printed circuit board power supply PMN15 S12

AC/DCsingle-outputCE

Product
AC/DC power supply module from the PMN/PCMN15 low-voltage series. PCB-mount version for decentralized power delivery to electronic and electrical circuits in industrial and process-control systems.

Features

• Wide input range (AC 30–60 V / DC 30–70 V)
• High isolation: 3.3 kVrms
• Rated output: 12 V, 1.3 A (15.6 W)
• PCB mounting for direct board integration
• Efficiency ≥73 %

Applications

• Decentralized power supply for industrial and automation applications
• Supply for electronic and electrical circuits in measurement, control and laboratory equipment
• Available as PCB-mount (PMN) or chassis-mount (PCMN)

Technical Data (summary)
Power: 15.6 W
AC Input: 30 - 60 V
DC Input: 30 - 70 V
Output Voltage U1: 12 V
Output Current I1: 1.3 A
Efficiency: ≥73 %
Mounting Type: PCB mount
Dimensions: 76.0 x 50.7 x 22.7 mm
Weight: 150 g

Characteristics / technical specifications

• Series: PMN/PCMN15 low voltage modules
• Model: PMN15 S12
• Nominal output voltage: 12 V (U1)
• Nominal output current: 1.3 A (I1)
• Rated output power: 15.6 W
• Input ranges: AC 30–60 V; DC 30–70 V
• Isolation: 3.3 kVrms
• Efficiency: ≥73 %
• Mounting: PCB mount
• Mechanical size (L x W x H): 76.0 x 50.7 x 22.7 mm
• Mass: 150 g
