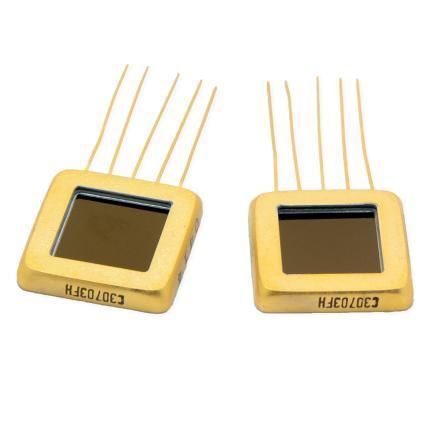

Avalanche photodiode (APD) module C30703FH

Product Description
The C30703FH silicon avalanche photodiode (Si APD) features a 10 x 10 mm photosensitive area in a flat-pack designed for extremely large-area radiation and particle detection. The device provides enhanced short-wavelength (blue) responsivity with peak quantum efficiency near 530 nm, enabling efficient coupling to scintillator crystals and fast timing for instrumentation and monitoring applications.

Features & Benefits:

• High quantum efficiency
• Low dark currents
• Easy coupling to scintillator crystals
• Immunity to electromagnetic fields
• Short-wavelength enhanced responsivity; custom packaging available
• Excellent timing resolution
• RoHS compliant

Applications:

• High-energy physics
• Radiation detection
• Particle physics
• Instrumentation
• Environmental monitoring

Technical specifications:

• Active Area: 100 mm²
• Vop Range: 275 - 425 V
• Capacitance: 100 pF
• Dark Current: 250 nA
• Noise Current: 0.5 pA/√Hz
• NEP: 40 fW/√Hz, 530 nm
• Package: Flat-pack
• Peak Sensitivity Wavelength: 530 nm
• Photosensitive area: 10 x 10 mm
• Response Time: 5 ns
• Responsivity: 16 A/W at 530 nm
