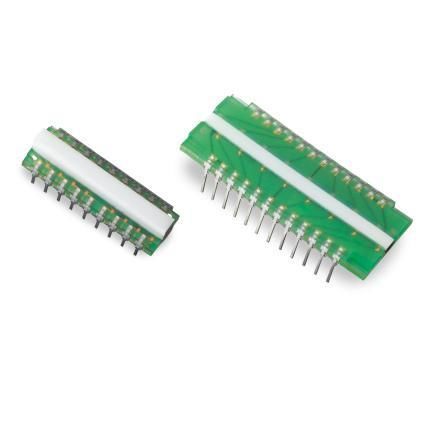

Chip on carrier photodiode array VTA0832H-H-NC-00-0

Overview
The VTA0832H-H-NC-00-0 is a silicon photodiode array (PDA) designed for X-ray detection. This 32-element device features a 0.8 mm pitch and is supplied mounted on an FR-4 PCB. Units can be ordered with or without scintillator crystals to suit high- or low-energy X-ray systems.

Key features

• 32 channels (16 dual-element photodiodes)
• 0.8 mm sensor-to-sensor pitch
• Extremely low dark current for improved detector performance
• High signal-to-noise characteristics suitable for imaging and detection
• Optional scintillator crystals available to convert X-rays to visible photons
• Transparent coating over photosensitive area and glob-top encapsulation for wire protection

Applications

• Medical and dental X-ray imaging systems
• Industrial X-ray inspection and non-destructive testing (NDT)
• Security scanning and baggage inspection
• Scientific instrumentation requiring linear X-ray detectors

Technical specifications

• Series: VTA0832H Series (32-channel PDA)
• Elements: 32 elements (16 dual-element photodiodes)
• Pitch: 0.8 mm (sensor-to-sensor spacing)
• Material: Silicon photodiodes mounted on FR-4 PCB
• Protective features: transparent coating over photosensitive area; glob top encapsulant protecting bond wires
• Scintillator: available on demand (various crystals for low/high energy)
• Primary application: X-ray detection
• Energy compatibility: compatible with high- and low-energy X-ray systems
• Performance: very low dark current; high signal-to-noise ratio

Ordering and customization
Available standard with 0.8 mm pitch; alternative pitches and custom configurations can be supplied on request. Specify whether scintillator mounting is required and which crystal type is preferred. Contact sales for lead times, MOQ and custom PCB or connector options.
