LIDAR photodiode C30737LH-300-73N

avalancheinfraredsilicon

Product description:

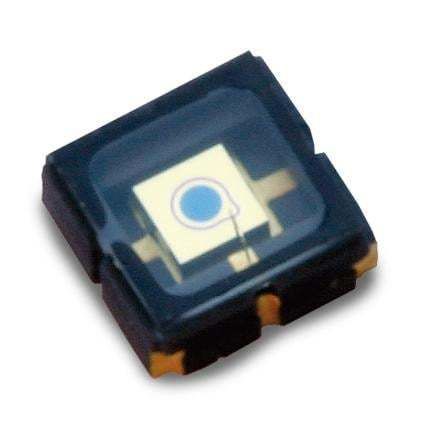

The C30737LH-300-73N silicon avalanche photodiode (APD) features a 300 µm active diameter, enhanced response around 800 nm and an integrated 650 nm optical bandpass filter in a leadless ceramic carrier (LCC) with a 3×3 mm glass window.

Key Features:

• High responsivity filtered at 650 nm
• Low noise and very fast rise time; frequency response above 700 MHz
• 300 µm active diameter optimized for near-infrared (800 nm)
• Integrated 650 nm optical bandpass filter (window)
• Leadless ceramic carrier (LCC) package with glass window

Applications:

• Laser range-finding
• Distance meters / rangefinders
• Area and security scanning
• Cost-sensitive applications requiring a high-performance detector

Technical specifications:

• Active Diameter: 300 µm
• Peak Sensitivity Wavelength: 650 nm
• Breakdown Voltage Vbd: 110–165 V
• Temperature Coefficient of Vop for Constant M: 0.6 V/°C
• Gain: 100 @ 800 nm
• Responsivity: 30 A/W at 650 nm
• Dark Current Id: 1 nA
• Noise Current: 0.2 pA/√Hz
• Capacitance: 0.7 pF
• Cut-off Frequency: 700 MHz
• Storage Temperature: -40°C to +100°C
• Operating Temperature: -20°C to +60°C
• Package: 3×3 mm glass window, leadless ceramic carrier (LCC)
• Window: 650 nm filter window
