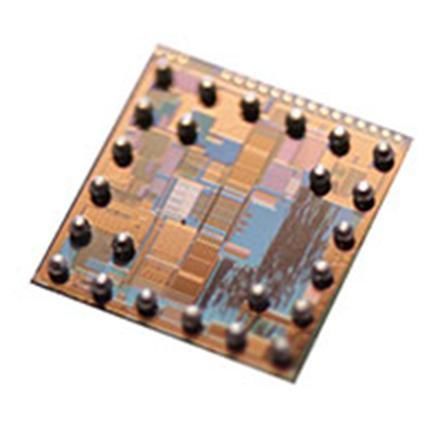

Time-of-flight sensor XTOF-100-A

Product overview
The XTOF-100-A is a monolithic, fully integrated CMOS Time-of-Flight (ToF) system-on-chip designed for optical distance measurement and object detection in industrial sensing applications.

Detailed description
The XTOF-100-A integrates an 8 × 8 cwToF pixel imager, precision A/D converter, on-chip controller and an integrated high-current LED or laser-diode driver to provide a complete acquisition and processing chain on a single die. Operating modes include high-speed single-pixel ranging and full 8 × 8 ToF imaging to support both point measurement and low-resolution depth mapping.

Specifications

• 8 × 8 ToF imager; pixel pitch 20 μm; quantum efficiency 90 % @ 850 nm
• Power consumption: 150 mW
• Integrated illumination driver: up to 200 mA
• Output data resolution: 10–18 bit

Features

• Maximum operating range: up to 240 m
• On-chip high-power LED or Laser Diode driver
• Compact footprint: 2.8 × 2.8 mm
• Frame rate: up to 4,000 ToF fps
• Ambient-light suppression: up to 100 kLux

Applications

• Range finding and LIDAR pre-processing
• Volumetric and dimensional measurement
• Presence and proximity detection
• Touchless switches and human-machine interfaces

Technical specifications

• SoC with integrated imager, A/D converter and on-chip controller
• 8 × 8 Time-of-Flight pixels
• Pixel pitch: 20 μm
• Quantum efficiency: 90 % @ 850 nm
• Power consumption: 150 mW
• Integrated illumination driver: up to 200 mA
• Data output resolution: 10–18 bit
• Operating range: up to 240 m
• Footprint: 2.8 × 2.8 mm
• Max frame rate: up to 4,000 ToF fps
• Ambient-light suppression: up to 100 kLux
