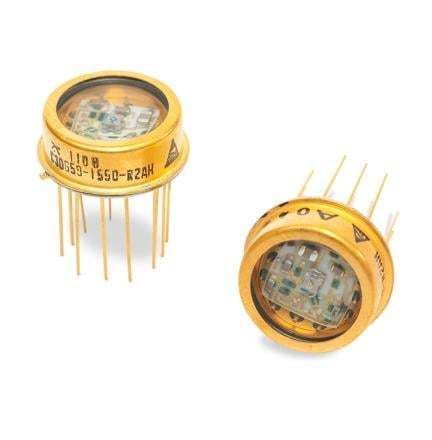

Avalanche photodiode (APD) module C30659-1550-R2AH

Product Overview
The C30659 Series includes a Silicon (Si) or InGaAs avalanche photodiode (APD) with a hybrid preamplifier, in the same hermetically-sealed TO-8 package, to allow for ultra-low noise operation. Our C30659-1550-R2AH device has a C30662EH InGaAs APD, optimized at 1550 nm.

Features
The C30659 Series features an inverting amplifier design with an emitter follower used as an output buffer stage. The Si APDs used in these devices are the same as used in the Excelitas’ C30817EH, C30902EH, C30954EH and C30956EH products, while the InGaAs APDs are used in the C30645EH and C30662EH products. These detectors provide very good response between 830 and 1550 nm and very fast rise- and fall-times at all wavelengths. The preamplifier section of the module uses a very low noise GaAs FET front end designed to operate at higher transimpedance than our standard C30950 Series.

Technical specifications

• System bandwidth: 50 MHz
• Ultra low noise equivalent power (NEP):
  • 150 fW/√Hz at 1300 nm
  • 130 fW/√Hz at 1550 nm
• Spectral response range: Peak at 1550 nm
• Typical power consumption: 150 mW
• ±5 V amplifier operating voltages
• 50 Ω AC load capability (AC: Coupled)
• Hermetically sealed TO-8 package
• High reliability
