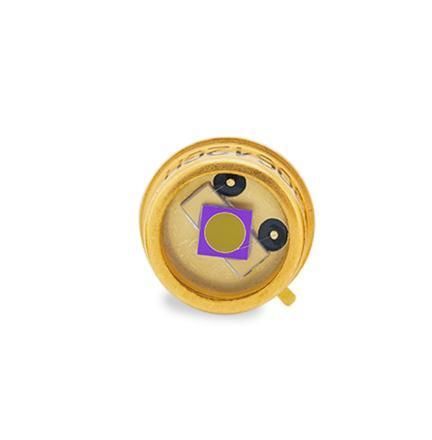

Wavelength-sensitive photodiode C30642GH-LC

LIDARInGaAsinfrared

Description
The C30642GH-LC is a large-area InGaAs PIN photodiode featuring a 2.0 mm active diameter chip housed in a TO-5 package with a flat glass window. It delivers high quantum efficiency across 800–1700 nm, ultra-low capacitance (approximately 50% of standard types) for roughly twice the 3 dB bandwidth, high responsivity, high shunt resistance and very low dark current. Typical devices show less than 1% non-linearity and uniformity within 2% over the active area, making the detector suitable for precision optical measurement and high-speed applications.

Features & Benefits

• Ultra-low capacitance for increased bandwidth
• High responsivity at 1300 nm and 1550 nm
• Large active area: 2.0 mm diameter
• High linearity across a wide dynamic range
• Offered in robust TO-5 packages with flat glass window
• Custom options available (e.g. integrated TEC)
• RoHS compliant

Applications

• Optical power meters and sensors
• Fiber-optic test and measurement equipment
• Near-infrared (NIR) spectroscopy
• Laser beam profiling stations
• Laboratory and industrial instrumentation
• LiDAR receivers and optical detection systems

Specifications (typical responsivity)

• 0.20 A/W at 850 nm
• 0.90 A/W at 1300 nm
• 1.05 A/W at 1550 nm

Technical specifications

• Model: C30642GH-LC
• Detector material: InGaAs PIN
• Active area diameter: 2.0 mm
• Package: TO-5 with flat glass window
• Spectral response / high quantum efficiency range: 800 nm to 1700 nm
• Responsivity (typical): 0.20 A/W @ 850 nm; 0.90 A/W @ 1300 nm; 1.05 A/W @ 1550 nm
• Ultra-low capacitance (~50% of standard type), resulting in approximately 2× 3 dB bandwidth versus standard type
• High shunt resistance
• Low dark current
• Linearity: typical devices less than 1% non-linearity across active area
• Uniformity: within 2% across detector active area
• Available customizations: e.g. integrated TEC options
• Compliance: RoHS compliant
