Avalanche photodiode (APD) module C30737LH-300-72N

Product Overview:

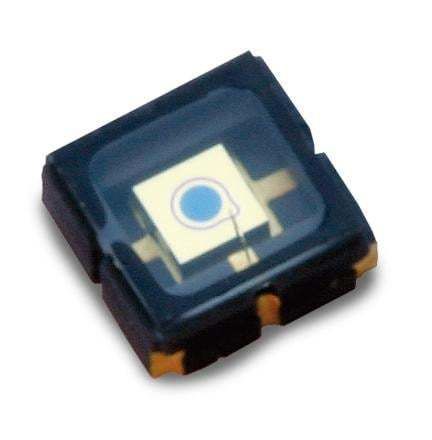

The C30737LH-300-72N Silicon Avalanche Photodiode (Si APD) features a 300 µm active diameter, enhanced response near 800 nm and a 905 nm optical bandpass filter in a leadless ceramic carrier (LCC). It is designed for fast, low-noise detection in compact packaged applications.

Key Features:

• High responsivity with integrated 905 nm optical filter
• Low noise and very fast rise time; frequency response above 700 MHz
• 300 µm active diameter optimized for 800 nm
• 905 nm bandpass filter window
• Leadless ceramic carrier option "LH"

Applications:

• Laser rangefinders
• Distance meters and surveying instruments
• Area and security scanning systems
• Cost-sensitive, high-performance detector applications

Technical specifications:

• Active Diameter: 300 µm
• Peak Sensitivity Wavelength: 905 nm
• Breakdown Voltage Vbd: 110-165 V
• Temperature Coefficient of Vop for Constant M: 0.6 V/°C
• Gain: 100 @ 800 nm
• Responsivity: 35 A/W at 905 nm
• Dark Current Id: 1 nA
• Noise Current: 0.2 pA/√Hz
• Capacitance: 0.7 pF
• Cut-off Frequency: 700 MHz
• Storage Temperature: -40 °C to +100 °C
• Operating Temperature: -20 °C to +60 °C
• Package: 3x3 mm glass-window leadless ceramic carrier (LCC)
• Window: 905 nm filter window
