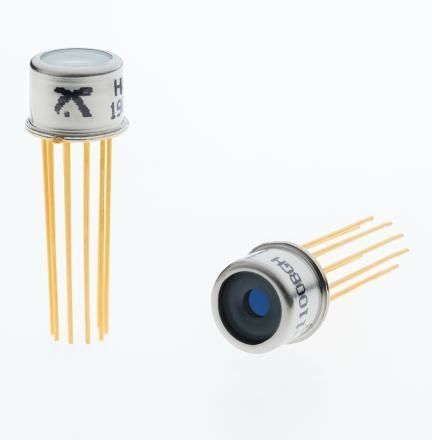

UV photodiode HPR-1100BGH

siliconinfraredwavelength-sensitive

Product overview
The HPR-1100BGH is a large-area Silicon PIN amplifier module featuring a 2.5 mm active-diameter chip housed in a hermetic TO package with a glass window. The device uses an external feedback resistor to allow bandwidth versus gain trade-offs and integrates a low-noise amplifier for simplified signal conditioning.

Features & Benefits:

• Silicon PIN amplifier module
• Custom hermetically-sealed TO package with glass window
• 2.5 mm active diameter chip for large-area detection
• Wide spectral response from 250 nm to 1150 nm
• Large active area with built-in low-noise amplifier

Applications:

• Low-frequency, high-gain detection systems
• Optical power meters
• Fast laser triggering
• Instrumentation and test equipment
• Simplified receivers for high-performance short-range communication links

Specifications
Peak wavelength: 900 nm
Responsivity: 130 MV/W with 200 MΩ feedback resistor

Technical specifications

• Part number: HPR-1100BGH
• Detector type: Silicon PIN
• Active diameter: 2.5 mm
• Package: Hermetic TO package (custom) with glass window
• Spectral range: 250 nm to 1150 nm
• Peak wavelength: 900 nm
• Responsivity: 130 MV/W (with 200 MΩ feedback resistor)
• External feedback resistor for bandwidth flexibility
• Large active area with built-in low-noise amplifier
• Typical applications: optical power metering, fast laser triggering, instrumentation, simplified short-range communication receivers
