Wavelength-sensitive photodiode C30641GH

infraredLIDARInGaAs

Product overview

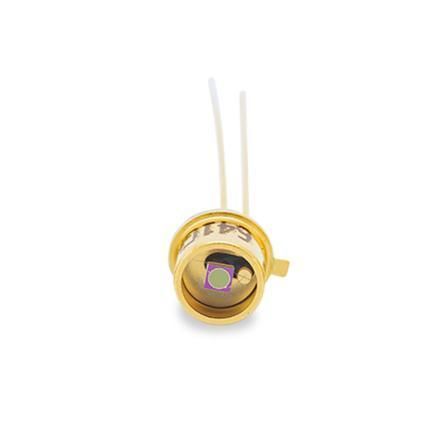

The C30641GH is a large-area InGaAs PIN photodiode with a 1.0 mm active diameter chip housed in a TO-18 package with a flat glass window. It delivers high quantum efficiency from 800 nm to 1700 nm, with low dark current, high shunt resistance and low capacitance for fast response and accurate measurements. The detector shows uniformity within 2% across the active area, suitable for precision optical instrumentation and sensing applications.

Features & Benefits

• Ultra-low capacitance option available for improved bandwidth
• High responsivity at 1300 nm and 1550 nm for telecom and sensing
• Active area diameter: 1.0 mm for large-area detection
• High linearity over wide dynamic range for reliable measurements
• Available in robust TO packages with flat glass window
• Possible customizations (e.g., integrated TEC) to meet system requirements
• RoHS compliant

Applications

• Optical power meters and calibrated detectors
• Fiber-optic test and communication equipment
• Near-infrared spectroscopy and sensing
• Laser beam profiling and alignment stations
• Precision instrumentation and test benches
• LiDAR receivers and rangefinding systems

Technical specifications

• Part number: C30641GH
• Package: TO-18 with flat glass window
• Active area diameter: 1.0 mm
• Spectral range / high quantum efficiency: 800 nm to 1700 nm
• Responsivity: 0.20 A/W at 850 nm; 0.90 A/W at 1300 nm; 0.95 A/W at 1550 nm
• High shunt resistance
• Low dark current
• Low capacitance for fast response time (ultra-low capacitance option available)
• Uniformity: within 2% across active area
• High linearity over large dynamic range
• Available customizations (e.g., TEC)
• RoHS compliant
