Avalanche photodiode (APD) module C30724EH-2

Product Description

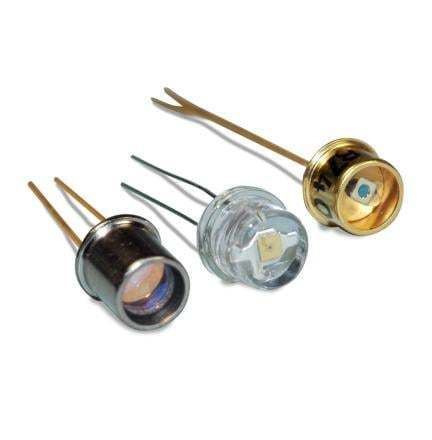

The C30724EH-2 Silicon Avalanche Photodiode (Si APD) integrates a built-in 905 nm narrow band-pass filter in a metal TO-18 package. Designed for high-volume 905 nm laser range-finding applications, it offers a 0.5 mm photosensitive diameter, low temperature coefficient and can be operated at fixed bias without temperature compensation.

Key Features

• Si APD with built-in 905 nm narrow band-pass filter in metal TO-18 can
• 5 ns rise and fall time without tail
• Operates at low gain
• No temperature compensation required

Applications

• Laser range finding
• Laser distance meters
• Traffic speed measurement (speed guns)

Specifications

• Active Area: 0.2 mm^2
• Active / Photosensitive Diameter: 0.5 mm
• Breakdown Voltage: 350 V
• Capacitance: 1 pF
• Total Dark Current (Bulk + Surface): 20 nA
• Gain: >12, 15, <18
• Noise Current: 0.1 pA/√Hz
• Package: TO-18 (metal TO-can)
• Peak Sensitivity Wavelength: 920 nm
• Responsivity: 8.5 A/W at 920 nm
• Rise / Fall Time: 5 ns
• Operating Voltage Range (Vop): 150-200 V
• Filter: Built-in 905 nm narrow band-pass
