Overview

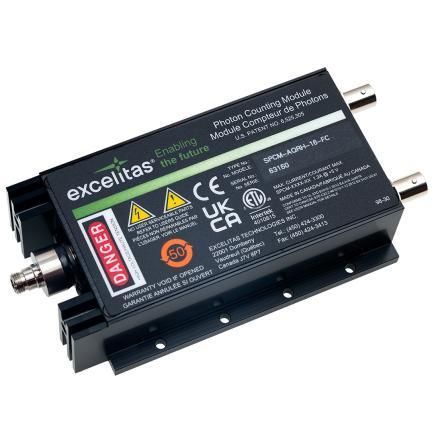

The Excelitas SPCM-NIR is a single-photon counting module optimized for the near-infrared spectrum. It is engineered for applications requiring enhanced NIR sensitivity such as long-range LiDAR, quantum communication, and microscopy.

Description
The module integrates a specially selected SLiK silicon avalanche photodiode (APD) delivering peak single-photon detection efficiency typically >73% with uniform response across a 180 µm diameter active area. SPCM-NIR provides improved red/NIR sensitivity while retaining key performance characteristics of the SPCM-AQRH platform including uniformity, overload protection, temperature stability and linear response at high count rates.

Key specifications

• Peak photon detection efficiency (PDE) @ 780 nm: 70% typical
• Peak single-photon detection efficiency: typically >73% (special SLiK APD selection)
• Active area diameter: 180 µm
• Gated output
• Single +5 V supply
• RoHS-compliant
• Maintains linearity at high count rates

Near-infrared SPCM-NIR-WX option table

• SPCM-NIR-1X — Output pulse width: 10 ns; Dead time: 24 ns; Output pulse height: 2.2 V; Dark count options (-W0/-W1/-W2/-W3/-W4): 1500 / 1000 / 500 / 250 / 100; Optical mounts (-BR1/-BR2): SM1 / C-MOUNT
• SPCM-NIR-2X — Output pulse width: 18 ns; Dead time: 28 ns; Output pulse height: 2.2 V; Dark count options: 1500 / 1000 / 500 / 250 / 100; Optical mounts: SM1 / C-MOUNT
• SPCM-NIR-3X — Output pulse width: 28 ns; Dead time: 35 ns; Output pulse height: 2.2 V; Dark count options: 1500 / 1000 / 500 / 250 / 100; Optical mounts: SM1 / C-MOUNT
• SPCM-NIR-4X — Output pulse width: 10 ns; Dead time: 24 ns; Output pulse height: 4.4 V; Dark count options: 1500 / 1000 / 500 / 250 / 100; Optical mounts: SM1 / C-MOUNT
• SPCM-NIR-5X — Output pulse width: 18 ns; Dead time: 28 ns; Output pulse height: 4.4 V; Dark count options: 1500 / 1000 / 500 / 250 / 100; Optical mounts: SM1 / C-MOUNT
• SPCM-NIR-6X — Output pulse width: 28 ns; Dead time: 35 ns; Output pulse height: 4.4 V; Dark count options: 1500 / 1000 / 500 / 250 / 100; Optical mounts: SM1 / C-MOUNT

Technical specifications

• Peak photon detection efficiency (PDE) @ 780 nm: 70% typical
• Peak single-photon detection efficiency: typically >73% (special SLiK APD selection)
• Active area diameter: 180 µm
• Gated output with selectable pulse-width/dead-time options (see option table)
• Maximum dark count rate options: -W0 (1500 cps), -W1 (1000 cps), -W2 (500 cps), -W3 (250 cps), -W4 (100 cps)
• Optical mounting bracket options for non-FC modules: -BR1 (SM1), -BR2 (C-MOUNT)
• Single +5 V supply
• RoHS-compliant
• Linearity maintained over high count rate
• Uniformity, overload protection and temperature stability comparable to SPCM-AQRH
