LIDAR photodiode C30618L-350

wavelength-sensitiveinfraredInGaAs

Product description

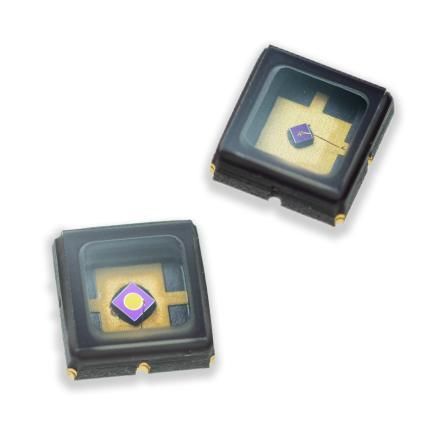

The C30618L-350 is a high-speed InGaAs PIN photodiode featuring a 350 µm active diameter chip housed in a ceramic SMD package with a window. It delivers high quantum efficiency across the 960 nm to 1700 nm range, with low capacitance for extended bandwidth and high shunt resistance for sensitivity, linearity and uniformity within 2% across the active area.

Applications

• High-volume consumer optoelectronic products
• Telecommunication receivers
• Instrumentation and test equipment
• High-speed optical switches
• Optical time reference for laser rangefinders
• LiDAR systems

Features & Benefits

• High bandwidth up to 3.5 GHz
• High responsivity at 1300 nm and 1550 nm
• Active area diameter: 350 µm
• Low capacitance (Typ. 4.0 pF)
• Compact ceramic SMD package with window
• Possible customizations (e.g. optical filters)
• RoHS compliant

Technical specifications

• Breakdown Voltage: 60 V
• Operating voltage: 5 V
• Capacitance: Typ. 4.0 pF
• Dark Current: Typ. <1.0 nA
• Dark Noise: Typ. <0.08 pA/√Hz
• Package: Ceramic SMD with window
• Active diameter: 350 µm
• Quantum efficiency / spectral range: high QE from 960 nm to 1700 nm
• Responsivity: Typ. 1.05 A/W @ 1550 nm
• High responsivity at 1300 nm and 1550 nm
• Rise/Fall Time: Typ. 0.5 ns
• High bandwidth up to 3.5 GHz
• High shunt resistance for high sensitivity, linearity and uniformity within 2% across the active area
