Avalanche photodiode (APD) module C30733 series

Product overview

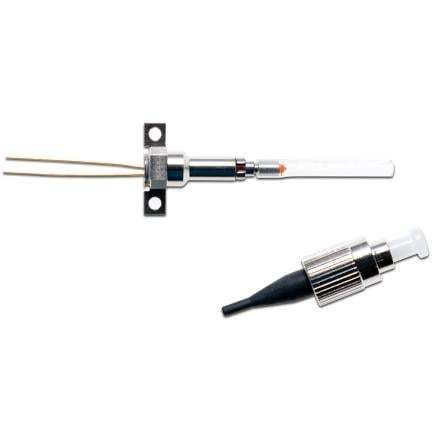

The C30733 Series combines high-gain InGaAs avalanche photodiodes (APDs) with a 30 µm active area. Excelitas InGaAs APDs deliver high quantum efficiency, strong responsivity and low noise across 1000–1700 nm. Available in a hermetically sealed TO-18 package or as an FC/APC single-mode fiber pigtail, the series is suited for fiber-based sensing and low-light detection in industrial and laboratory applications.

Key features

• Small form factor with 30 µm active area
• High gain up to M = 100 for enhanced low-light detection
• Spectral response: 1000–1700 nm; peak responsivity near 1550 nm
• Available with FC/APC pigtail for direct fiber integration (SM-9/125)
• C30733EQC-3 model provides faster recovery for high-frequency applications

Models and package types

• C30733BQC-01 — FC/APC fiber pigtail
• C30733EQC-3 — FC/APC fiber pigtail (faster recovery)
• C30733EH-1 — hermetically sealed TO-18 package

Typical pigtail parameters

• Pigtail length: 1 m (typical)
• Pigtail fiber: Single Mode (SM-9/125)
• Pigtail termination: FC/APC

Electrical and optical specifications (summary)

• Breakdown voltage (V_BD): 45 V (min), 50 V (typ), 70 V (max)
• Spectral range (Δλ): 1000–1700 nm
• Peak responsivity (λ_peak): 1550 nm (typ)
• Responsivity at minimal and typical gain (R): 9.4 A/W (min) — 37.6 A/W (typ)
• Recommended operating gain (M): 10 (min) — 40 (typ)
• Temperature coefficient of V_BD: 0.14 V/°C (typ)
• Capacitance (C): up to 0.5 pF
• Dark current (M=40): 0.5 nA (typ) — 10 nA (max)
• Dark noise (M=40): 0.3 pA/√Hz (typ) — 0.5 pA/√Hz (max)
• Noise equivalent power (M=40): 8 fW/√Hz (typ) — 13 fW/√Hz (max)
• Rise/fall time (typ): 0.12 ns
• Bandwidth (3 dB): up to 3 GHz
• Quantum efficiency (QE): 75% (typ)

Technical specifications

• Active area: 30 µm
• High gain capability: up to M = 100
• Spectral response range: 1000–1700 nm
• Peak responsivity at 1550 nm
• Responsivity range at minimal and typical gain: 9.4 A/W (min) to 37.6 A/W (typ)
• Recommended operating gain: M = 10 to 40
• Breakdown voltage: 45–70 V (typ 50 V)
• Temperature coefficient of breakdown voltage: 0.14 V/°C (typ)
• Capacitance: ≤ 0.5 pF
• Dark current (M=40): typ 0.5 nA, max 10 nA
• Dark noise (M=40): typ 0.3 pA/√Hz, max 0.5 pA/√Hz
• Noise equivalent power (M=40): typ 8 fW/√Hz, max 13 fW/√Hz
• Rise/fall time (typ): 0.12 ns; bandwidth up to 3 GHz
• Quantum efficiency: typ 75%
• Package options: hermetically sealed TO-18 or FC/APC single-mode fiber pigtail
• Pigtail: Single Mode SM-9/125, length 1 m (typ), termination FC/APC
• Latest model: C30733EQC-3 for faster recovery in high-frequency systems
