Photodiode array VTA1216H-L-NC-00-0

Product Overview

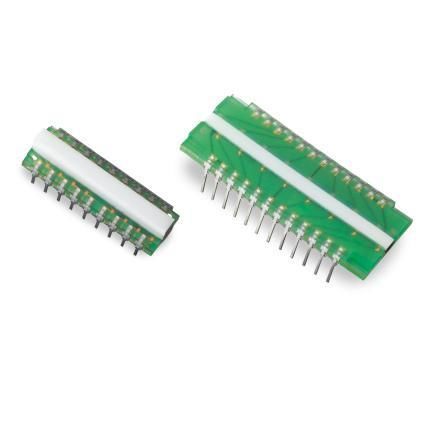

The VTA1216H-L-NC-00-0 is a 1.2 mm pitch, 16-element silicon photodiode array optimized for X-ray detection. It is offered optionally with scintillator crystals for low-energy conversion and can be integrated in single- or dual-energy detection architectures. It can be paired with the VTA1216H-H Series for high-energy detection in dual-energy systems.

Series Description
The VTA1216H Series is a 16-channel, high-resolution photodiode array (PDA). The design uses eight dual-element photodiodes mounted directly on an FR-4 printed circuit board (PCB). The standard sensor-to-sensor spacing (pitch) is 1.2 mm; other pitches are available off-the-shelf or as custom variants.

Construction & Packaging
A transparent coating protects the photosensitive chip area while a glob top encapsulant shields bond wires from mechanical and environmental damage. Devices are available with or without a scintillator mounted over the active area to convert incident X-rays into visible photons.

Key Features

• Extremely low dark current photodiodes for improved detection sensitivity
• High signal-to-noise ratio suitable for precision X-ray imaging
• Optional scintillator crystals to convert X-rays to visible photons
• 16 channels at 1.2 mm pitch for compact high-resolution arrays
• Compatible with single- and dual-energy detection architectures

Technical specifications

• Series: VTA1216H Series
• Part number example: VTA1216H-L-NC-00-0
• Number of elements / channels: 16
• Pitch (sensor-to-sensor spacing): 1.2 mm
• Photodiode configuration: 8 dual-element photodiodes mounted on FR-4 PCB
• Dark current: extremely low (designed for low dark current)
• Signal-to-noise: high
• Scintillator: optional, mounted over active area for X-ray to visible photon conversion
• Packaging: transparent coating over photosensitive area; glob top encapsulant protecting bond wires
• Applications: X-ray detection, single- or dual-energy detection architectures
