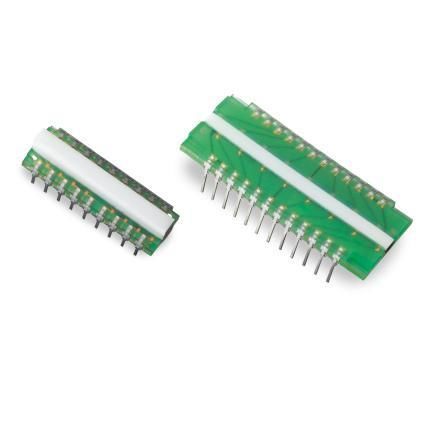

Photodiode array VTA1616H-H-SC-01-0

Product overview
The VTA1616H-H-SC-01-0 is a linear photodiode array (PDA) designed for X-ray detection and integration in single- or dual-energy imaging systems. The device features 16 single-element photodiodes at a 1.6 mm pitch and is available with an optional CsI HE scintillator for high-energy conversion.

Series description
The VTA1616H Series provides a high-resolution 16-channel PDA. Each sensor comprises 16 individual photodiodes mounted on an FR-4 printed circuit board (PCB). Standard pitch for this configuration is 1.6 mm; alternate pitches can be supplied as standard variants or custom builds to match system requirements.

Protection and scintillator options
The photodiode elements are protected by a molded, X-ray radiation-hard transparent encapsulant to ensure environmental and mechanical robustness. Scintillator materials are available optionally and can be mounted directly over the photodiode active area to convert incident X-rays to visible photons (e.g., CsI HE for high-energy detection).

Key features

• Extremely low dark current photodiodes
• High signal-to-noise ratio for improved image fidelity
• Optional scintillator crystals on demand (e.g., CsI HE)
• 16 channels with 1.6 mm pitch
• Compatible with single- and dual-energy detection architectures; pairs with VTA1616H-L Series for low-energy detection

Technical specifications

• Series: VTA1616H Series
• Part example: VTA1616H-H-SC-01-0 (Si PDA, 16 elements, 1.6 mm pitch, CsI HE crystal)
• Channels: 16
• Pitch: 1.6 mm
• Detector type: Linear photodiode array (16 single-element photodiodes on FR-4 PCB)
• Encapsulation: Molded X-ray radiation-hard transparent encapsulant
• Scintillator: Optional; various crystals available (e.g., CsI HE for high-energy detection)
• Applications: X-ray detection, medical and industrial imaging, dual-energy architectures
• Compatibility: Can be paired with VTA1616H-L Series for low-energy detection
• Performance: Extremely low dark current; high signal-to-noise ratio
