Infrared photodiode C30665GH

InGaAsLIDARPIN

Product Overview

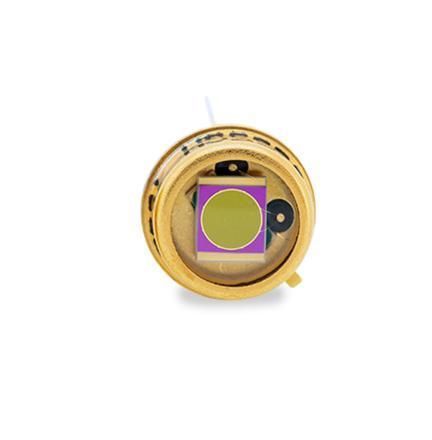

The C30665GH is a large-area InGaAs PIN photodiode featuring a 3.0 mm active-diameter chip housed in a TO-5 package with a flat glass window. It delivers high quantum efficiency across 800 nm–1700 nm, with high responsivity, high shunt resistance, low dark current and low capacitance for fast response and stable performance. Uniformity across the active area is within 2%.

Features & Benefits

• Ultra-low capacitance option available
• High responsivity at 1300 nm and 1550 nm
• Active area diameter: 3.0 mm
• High linearity over a large dynamic range
• Available in robust TO packages (TO-5 with flat glass window)
• Customizations possible (e.g. Thermoelectric Cooler, TEC)
• RoHS compliant

Applications

• Optical power meters
• Fiber optic test and communications
• Near-IR spectroscopy
• Laser profiling stations
• Instrumentation
• LiDAR systems

Specifications

• 0.20 A/W at 850 nm
• 0.90 A/W at 1300 nm
• 0.95 A/W at 1550 nm

Technical specifications

• Model family: C3066x series (large-area InGaAs PIN)
• Active area diameter: 3.0 mm
• Package: TO-5 with flat glass window
• Spectral range / high quantum efficiency: 800 nm to 1700 nm
• Responsivity: 0.20 A/W @ 850 nm; 0.90 A/W @ 1300 nm; 0.95 A/W @ 1550 nm
• Options: ultra-low capacitance variant available
• Performance: high shunt resistance, low dark current, low capacitance for fast response, high linearity over large dynamic range
• Uniformity: within 2% across the detector active area
• Customization: available (e.g. Thermoelectric Cooler, TEC)
• Compliance: RoHS compliant
