Wavelength-sensitive photodiode C30641GH-LC

LIDARinfraredInGaAs

Product Overview

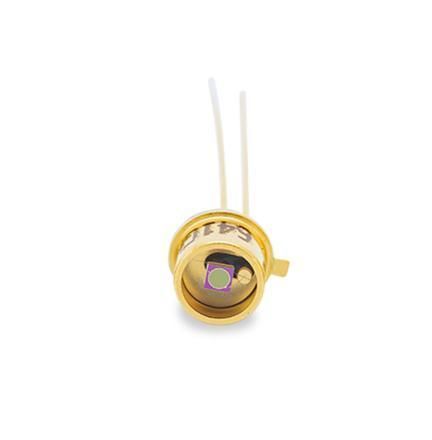

The C30641GH-LC is a large-area InGaAs PIN photodiode featuring a 1.0 mm active diameter chip housed in a TO-18 package with a flat glass window. It delivers high quantum efficiency from 800 nm to 1700 nm, ultra-low capacitance (approximately half that of standard types) for roughly 2× the 3 dB bandwidth, high responsivity, high shunt resistance and low dark current. Typical units show <1% non-linearity and uniformity within 2% across the active area.

Features & Benefits

• Ultra-low capacitance for extended bandwidth
• High responsivity at 1300 nm and 1550 nm
• Active area diameter: 1.0 mm
• High linearity across a large dynamic range
• Available in robust TO packages (TO-18 with flat glass window)
• Customizations available (e.g. thermoelectric cooling)
• RoHS compliant

Applications

• Optical power meters
• Fiber‑optic test and communication equipment
• Near‑IR spectroscopy
• Laser beam profiling stations
• Precision instrumentation
• LiDAR receivers

Technical specifications

• Responsivity: 0.20 A/W at 850 nm
• Responsivity: 0.90 A/W at 1300 nm
• Responsivity: 1.05 A/W at 1550 nm
• Active area diameter: 1.0 mm
• Package: TO-18 with flat glass window
• Spectral response / high quantum efficiency: 800 nm to 1700 nm
• Ultra-low capacitance (~half standard type) → ~2× 3 dB bandwidth
• High shunt resistance and low dark current
• Typical non-linearity < 1%; uniformity within 2% across active area
• Available customizations (e.g. thermoelectric cooling)
• RoHS compliant
