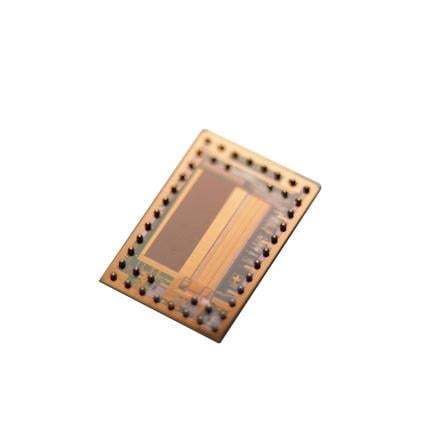

Time-of-flight sensor XTOF-101-A

Product overview
The XTOF-101-A is a monolithic, fully integrated photoelectric CMOS Time-of-Flight system-on-chip (SoC) designed for optical distance measurement and object detection. It embeds a 160 × 60-pixel ToF imager, an integrated LED or laser driver, an A/D converter and an on-chip controller to provide a full signal acquisition and processing chain on a single die. Per-pixel outputs are 12-bit DCS distance data, exposed via a high-speed digital 8-bit parallel video interface.

Key specifications

• 160 × 60-pixel ToF imager
• Pixel pitch: 20 μm
• Quantum efficiency: 90 % @ 850 nm
• Output data: 12-bit DCS distance data per pixel
• High-speed digital 8-bit parallel video interface

Features

• Low power consumption: 300 mW
• Integrated illumination driver up to 200 mA (on-chip high power LED or Laser Diode driver)
• Very small footprint: 6.3 × 4.2 mm
• Operating range of up to 240 m
• Up to 512 ToF frames per second
• Excellent ambient-light suppression up to 100 kLux

Applications

• Volumetric measurement
• Door sensors
• Collision avoidance
• Gesture sensing

Technical specifications

• Device type: Monolithic, fully integrated photoelectric CMOS Time-of-Flight system-on-chip (SoC)
• Imager resolution: 160 × 60 pixels
• Pixel pitch: 20 μm
• Quantum efficiency: 90 % @ 850 nm
• Per-pixel output: 12-bit DCS distance data
• Interface: High-speed digital 8-bit parallel video interface
• Integrated components: LED/laser driver, A/D converter, on-chip controller
• Illumination driver capability: up to 200 mA
• Power consumption: ~300 mW
• Operating range: up to 240 m
• Max frame rate: up to 512 ToF frames/s
• Footprint: 6.3 × 4.2 mm
• Ambient-light suppression: up to 100 kLux
