Time-of-flight sensor XTOF-102-A

Product Overview

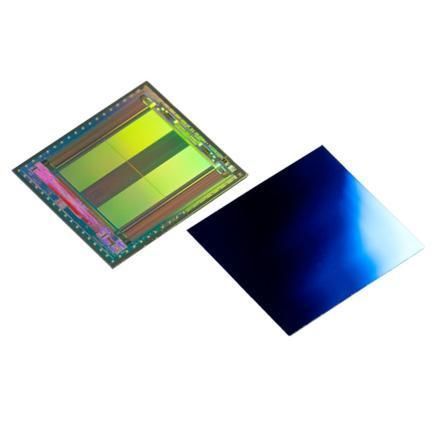

The XTOF-102-A is a monolithic, fully integrated continuous-wave (cw) Time-of-Flight (ToF) system-on-chip (SoC) designed for optical distance measurement and object detection in industrial and embedded imaging applications.

Key Functionality
The XTOF-102-A integrates a QVGA (320 × 240) ToF imager, a programmable illumination driver (LED or laser), A/D conversion and an on-chip controller. It provides per-pixel 12-bit DCS distance data accessible via a high-speed 12-bit parallel video interface for direct acquisition and downstream processing.

Specifications (summary)

• 320 × 240 pixels, pixel pitch 20 μm, quantum efficiency 85% @ 850 nm
• Power consumption: 750 mW
• Integrated illumination driver current: up to 200 mA
• Output format: 12-bit DCS distance data per pixel

Features

• Operating range up to 240 m
• On-chip high-power LED or laser diode driver
• Compact chip footprint: 9.7 × 8.7 mm
• Up to 158 ToF frames per second

SoC and Interface Details
The device implements a complete signal acquisition and processing chain on a single chip, including illumination control, A/D conversion and timing. Per-pixel 12-bit DCS distance data are output via a high-speed 12-bit parallel video interface suitable for integration with imaging processors and embedded systems.

Applications

• Volumetric and depth sensing
• Robotics and UAV/drone navigation
• Industrial automation and machine vision
• Smart sensor modules for building and home automation

Documentation
Datasheet and integration guidelines are available covering electrical interfaces, timing, thermal and mechanical integration for system design.

Technical specifications

• Sensor resolution: 320 × 240 pixels
• Pixel pitch: 20 μm
• Quantum efficiency: 85% @ 850 nm
• Power consumption: 750 mW
• Integrated illumination driver current: up to 200 mA
• Output format: 12-bit DCS distance data per pixel
• Interface: high-speed 12-bit parallel video interface
• Operating range: up to 240 m
• Chip footprint: 9.7 × 8.7 mm
• Maximum ToF frame rate: up to 158 frames/s
