Avalanche photodiode (APD) module LLAM-900-R5BH

Product Overview

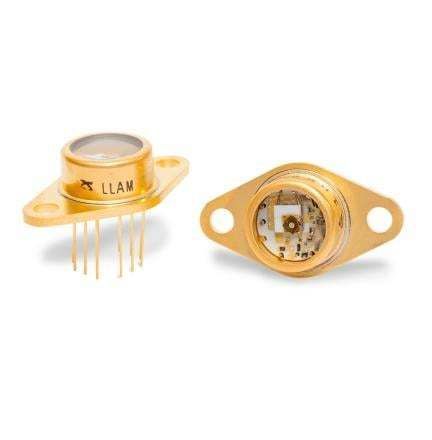

The LLAM-900-R5BH is a high-speed, low-light analog silicon avalanche photodiode (APD) receiver with a 0.5 mm active diameter in a hermetically sealed package. It integrates a thermoelectric cooler and a preamplifier, providing 200 MHz bandwidth for accurate analog signal detection in demanding optical systems.

LLAM Series
The LLAM Series combines an APD chip, thermoelectric (TE) cooler and preamplifier inside a hermetically sealed, modified 12-lead TO-66 flange package with enhanced heat sinking. Fully RoHS compliant, these modules maintain stable responsivity and reduced noise over a 5°C to 40°C ambient range thanks to the TE cooler.

Included APD
The LLAM-900-R5BH includes the Excelitas C30902EH APD.

Applications

• Laser range finding
• Target recognition
• Distributed temperature sensing (DTS)
• Confocal microscopy
• Analytical instrumentation
• High-speed free-space optical communication

Specifications (table entries)
35 — 55 fW/√Hz at 830 nm
40 — 65 fW/√Hz at 900 nm

Features / Technical specifications

• Model: LLAM-900-R5BH
• Active diameter: 0.5 mm
• Detector type: Silicon APD (includes C30902EH)
• Package: Hermetically sealed, modified 12-lead TO-66 flange
• Thermoelectric (TE) cooler included
• Bandwidth: 200 MHz
• RoHS compliant
• Designed for high-speed, low-light analog signal detection
• TE cooler provides reduced noise and stable responsivity from 5°C to 40°C ambient
• Additional heat sinking via TO-66 flange package
• Measured: 35 — 55 fW/√Hz at 830 nm; 40 — 65 fW/√Hz at 900 nm
