LIDAR photodiode C30737LH-500-90N

wavelength-sensitivesiliconavalanche

Product Overview

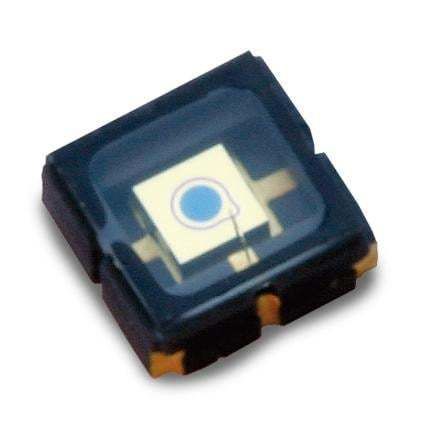

The C30737LH-500-90N silicon avalanche photodiode (APD) provides a 500 µm active diameter with enhanced response around 900 nm. Supplied in a leadless ceramic carrier (LCC) with the "LH" option, it is designed for fast, low-noise detection in compact packages.

Key Features

• High responsivity across 500–1000 nm, optimized near 900 nm
• Low noise and fast rise time with frequency response > 380 MHz
• 500 µm active diameter for higher collection area
• Available in leadless ceramic carrier option "LH"

Applications

• LiDAR systems
• Laser range-finding
• Security and scanning detectors
• Cost-sensitive, high-performance detection applications

Technical specifications

• Active Diameter: 500 µm
• Peak Sensitivity Wavelength: 900 nm
• Breakdown Voltage Vbd: 180–260 V (binning available)
• Temperature Coefficient of Vop for Constant M: 1.3 V/°C
• Gain: 100 @ 900 nm
• Responsivity: 60 A/W at 900 nm
• Dark Current Id: <1 nA (0.1 indicated)
• Noise Current: 0.1 pA/√Hz
• Capacitance: 1 pF
• Rise/Fall Time: 0.9 ns (R load = 50 Ω)
• Cut-off Frequency: 380 MHz
• Storage Temperature: -50 °C to +100 °C
• Operating Temperature: -40 °C to +85 °C
• Package: 3 × 3 mm glass window, Leadless Ceramic Carrier (LCC)
• Window: Standard window
